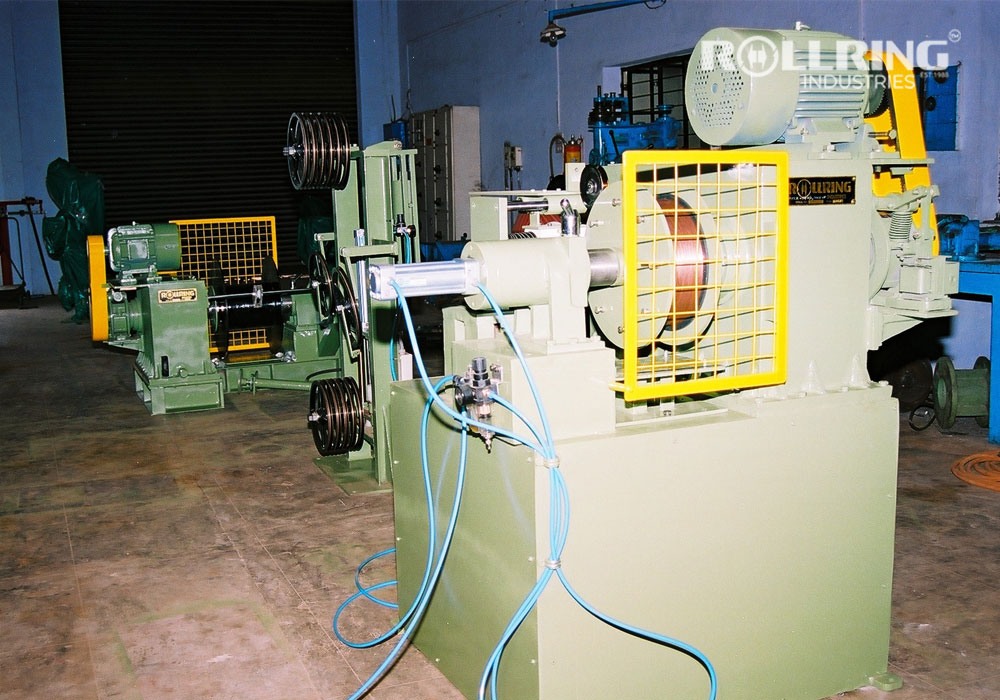

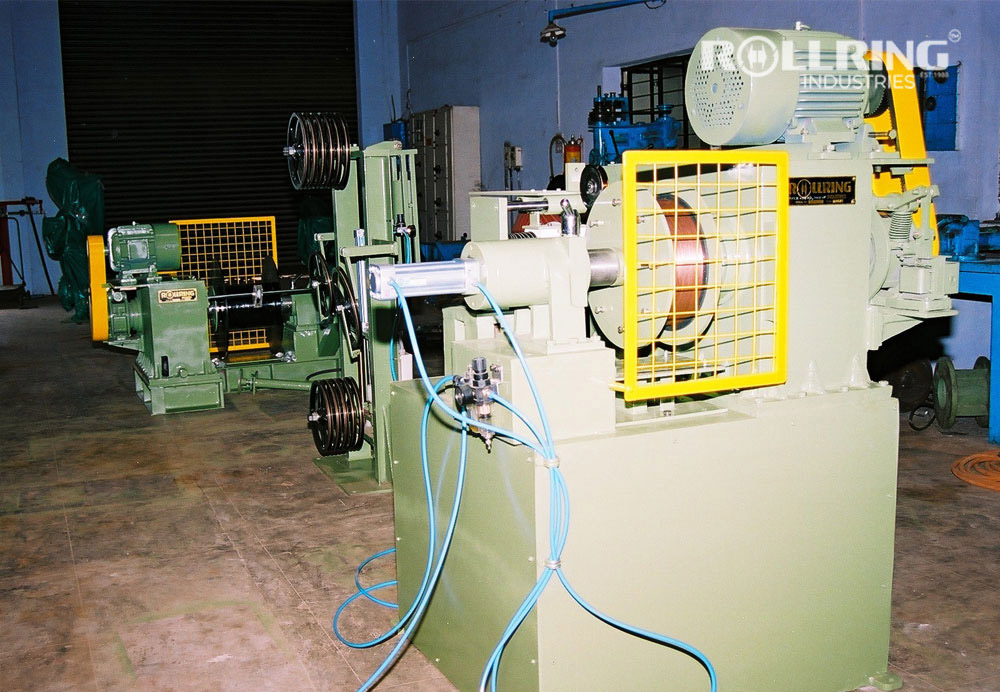

Application : Tension controlled Rewinding of CO 2wire

We offer payoff stand to suit the Dimensions of Bobbin, Max filled Weight, Maximum Diameter material and Speed.

Bobbin Dimension :
Flange diameter Range : 300mm
Barrel diameter : 200mm

Width : 100mm

Bore diameter : 50mm

Winding speed : 300 Meters / minute. Variable speed

Wire size : 0.8mm 2mm

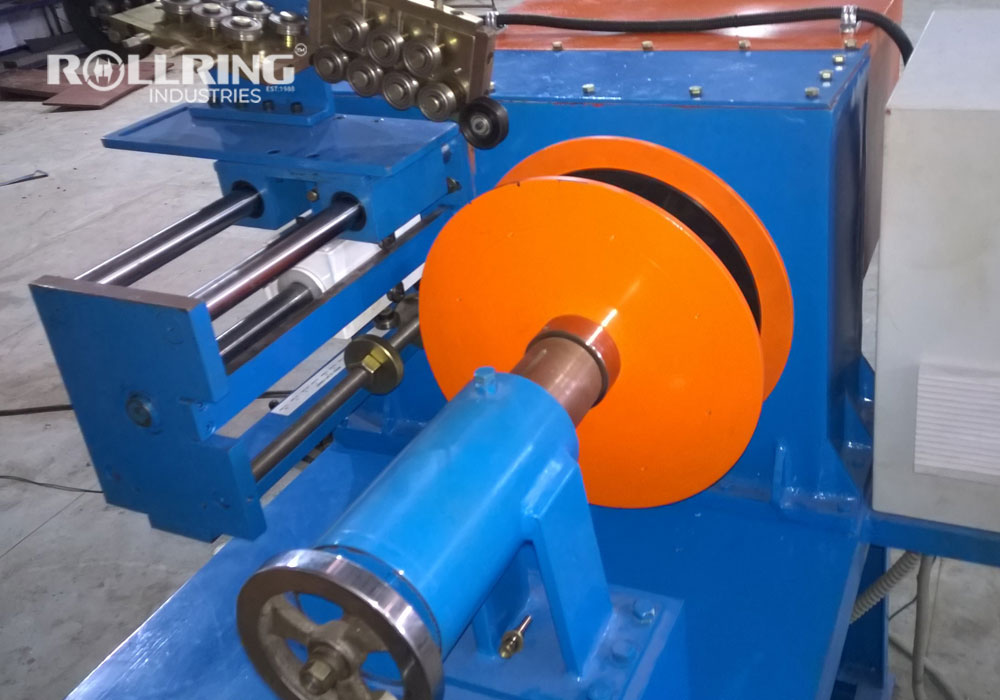

Bobbin loading : Pintle type between Head stock and Tail stock

Head Stock : Head stock shaft with pintle and dive pulleys are assembled on a sturdy housing with bearings.

Tail stock : Pneumatically operated or Screw type

Traverse Assembly : With Rollring Traverse unit. Traverse pitch and Stroke length can be adjusted very finely. Wire guide assembly is mounted on a carrier with linear bearing and two number guide shaft.

Length counter : Electronic.

Drive : By 2 HP A C Motor. Variable frequency drive is provided for speed variation

Control Panel : Control panel with AC variable frequency drive is offered for speed control

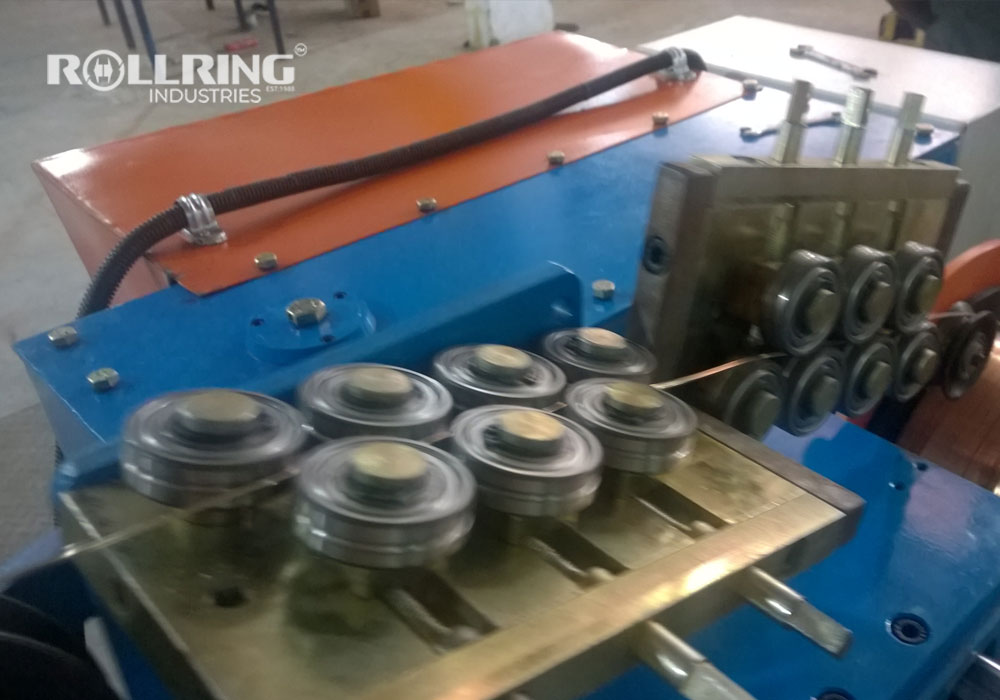

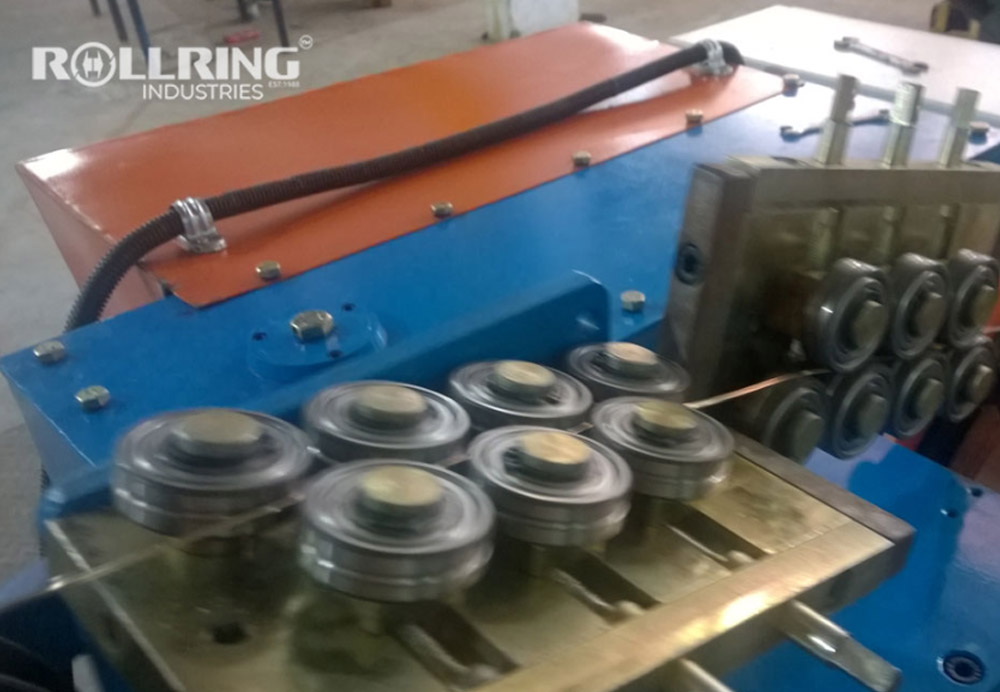

Optional Accessory : Killing Roller Assembly : Consists of 2 set of 4+ 3 rollers mounted vertically and horizontally with locking system. Rollers are adjustable individually.
