- Your Trusted Partner in Traverse Units, Assemblies, and Linear Drives
Traverse Unit

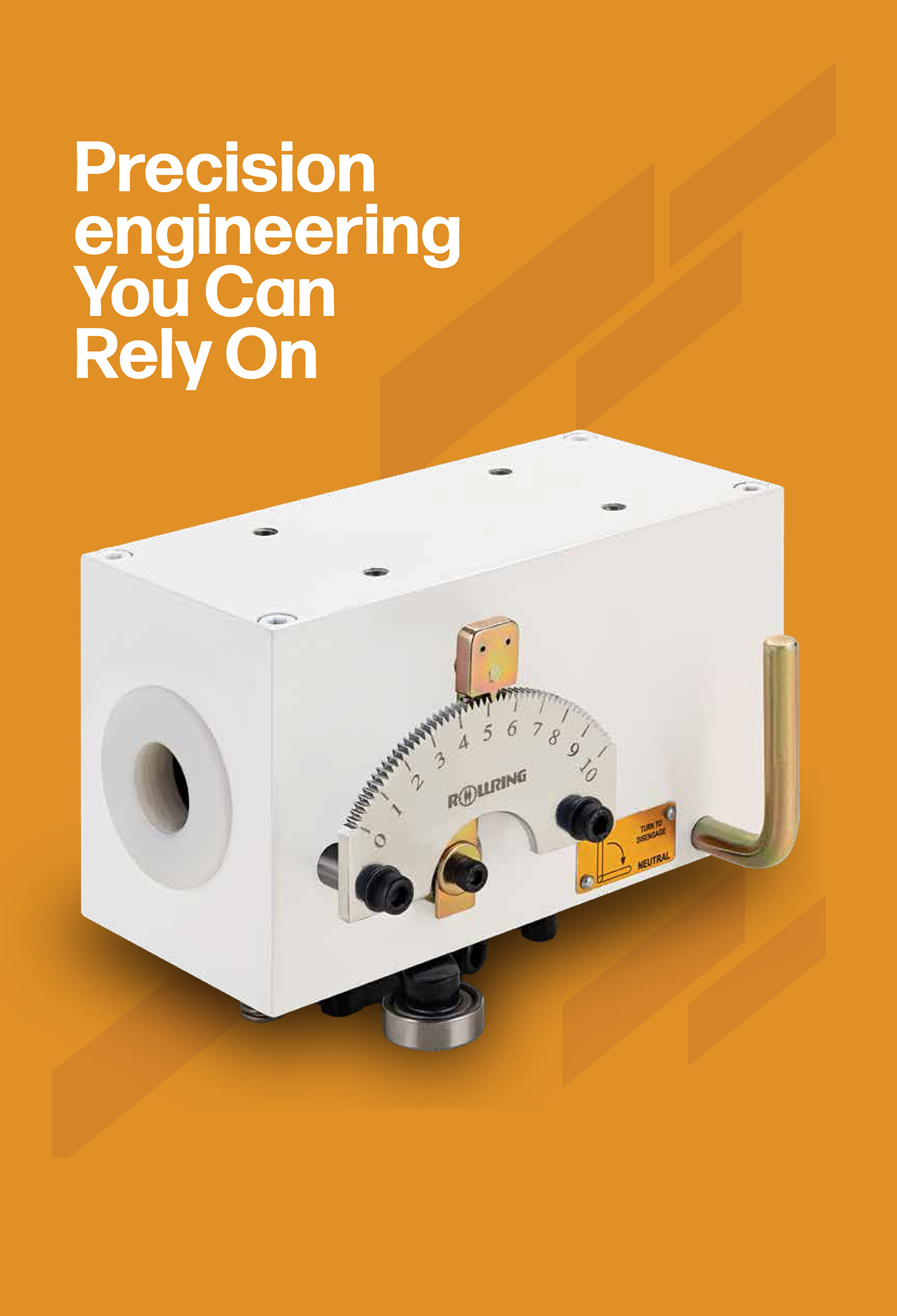

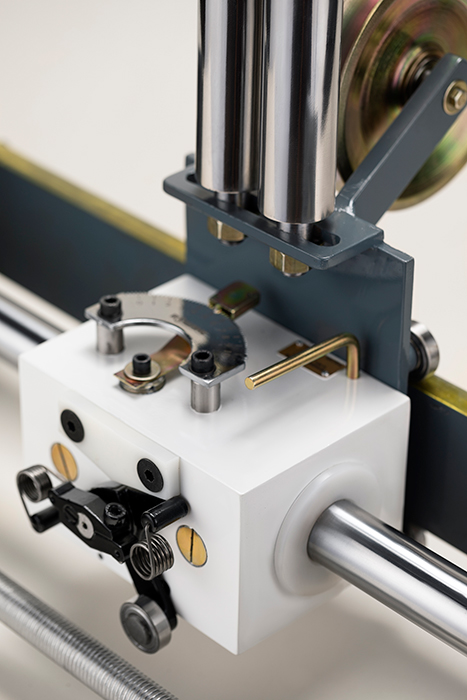

Rollring Traverse Units
Rollring Traverse Units are precision-engineered for applications that demand accurate linear reciprocating motion. These units support variable speeds, adjustable stroke lengths, and feature automatic, instantaneous reversal, enabling continuous operation with constant shaft rotation in one direction.
Product Range
We offer an expanded range of Rollring Traverse Units to suit a wide variety of shaft diameters:
Available for Shaft Diameters:
10 mm, 15 mm, 16 mm, 20 mm, 22 mm, 25 mm, 30 mm, 40 mm, 50 mm, 60 mm, and 80 mm
Available Models Include:
HT1, HT2, 4RR15, HT16, 4RR16, HT3, 4RR20, HT22, 4RR22, HT25, 4RR25, HT3N, 4RR30, 3RR40, HT4, 4RR40, HT5, 4RR50, HT6, 4RR60, HT8, and 4RR80
Series Overview
| Series | Description |
|---|---|

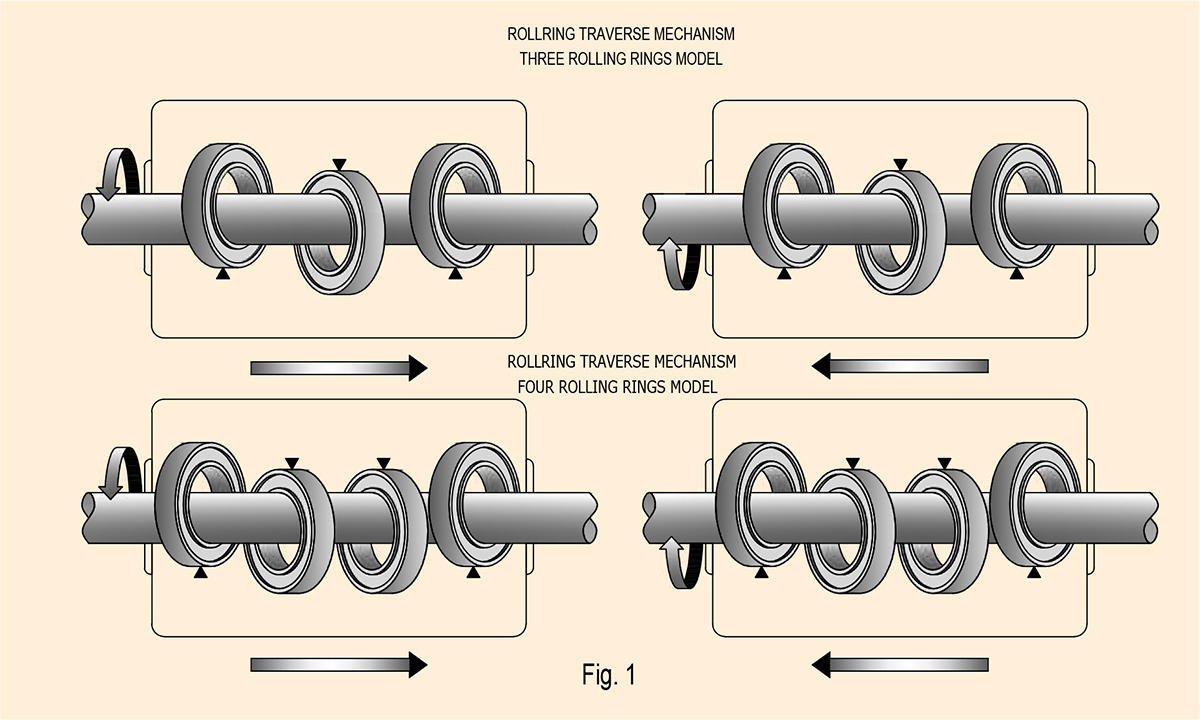

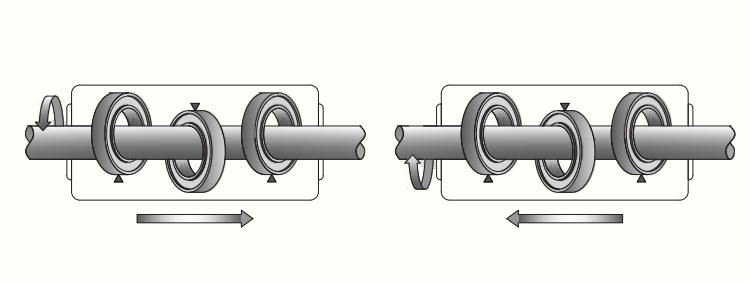

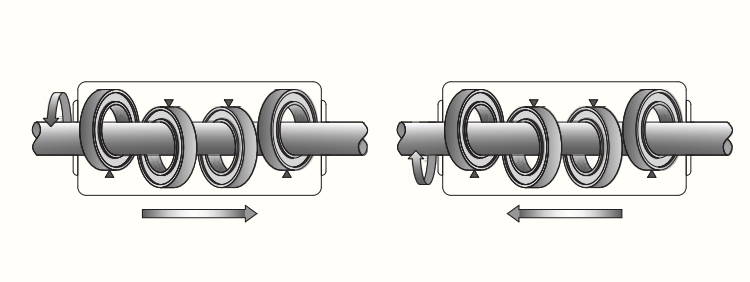

| HT & 3RR Series | Designed with rolling rings for efficient traversing motion. |
| 4RR Heavy-Duty Series | Features four rolling rings for increased load-bearing capacity in demanding industrial applications. |
Download Catalogue
Applications
Rollring Traverse Units are essential for applications requiring precise linear reciprocation with controlled speed, adjustable stroke, and automatic reversal. They are widely used for efficient and accurate winding, guiding, or layering of materials across multiple industries.
Common Applications Include:
- Delicate fiber optic wires
- Heavy-duty and high-tension cables
- Wires, ropes, flat materials, strips, straps, hoses, filaments, tapes, and foils
- Solid materials such as steel, aluminum, copper, rubber, plastics, and fibere
Key Features
- Precision Speed Control : Easily adjustable linear speed for precise operations.
- Variable Speed Control : Fine-tune linear speed with a simple lever for optimal performance.
- Flexible Stroke Length : Adjustable stroke lengths cater to diverse applications.
- Smooth Operation : Engineered for reliable performance on a plain, round, hardened shaft with a finely ground finish.
- Automatic Reversal : Instantaneous and automated motion reversal for seamless operation.
- Low Torque Requirement : Efficient operation with minimal torque needed.
- Consistent Rotation : Ensures constant-speed rotation of the shaft in a single direction.
- Automatic Speed Synchronization : Ideal for winding applications, synchronizing speed automatically between bobbin and traverse.
- No Extra Motor Needed: Eliminates the need for additional motors and control mechanisms.
- Backlash-Free Motion: Provides smooth operation with zero backlash.
- Heavy Load Handling: Capable of managing heavy loads with an effective load carrier.
- Extended Shaft Lengths: Traverse assemblies available with shaft lengths up to four meters.
- Wide Model Variety: 22 models in three and four rolling ring configurations, accommodating shaft diameters from 10 to 80 mm.
- Side Thrust Capacity: Handles loads ranging from 5 kg to 300 kg.
- Maintenance-Free Operation: Designed for virtually zero maintenance.
- Readily Available Spares: Spare parts available ex-stock for convenience. Two-Year Guarantee: Comes with a two-year warranty for peace of mind.
Traverse Unit Models and Specifications
This table provides a summary of the key specifications for each Rollring Traverse unit model.
| Traverse Unit Model |
Shaft Diameter (mm) |
Number of Rolling Rings |
Side Thrust (Kg) |
Stroke Length | Maximum Pitch |
Maximum Shaft Speed (RPM) |
Maximum Linear Speed (Mtrs/minute) |
Drive Torque (Kg Cm) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| HT1 | 10 | 3 | 5 | Adjustable | 5.6 | 2000 | 11.2 | 0.25 | 0.5 |
| HT2 | 15 | 3 | 10 | Adjustable | 9.5 | 2000 | 19 | 0.3 | 1.1 |
| 4RR15 | 15 | 4 | 18 | Adjustable | 9.5 | 2000 | 19 | 0.5 | 1.31 |
| HT16 | 16 | 3 | 10 | Adjustable | 9.9 | 2000 | 19.8 | 0.3 | 1.08 |
| 4RR16 | 16 | 4 | 16 | Adjustable | 9.9 | 2000 | 19.8 | 0.5 | 1.28 |
| HT3 | 20 | 3 | 18 | Adjustable | 16 | 1500 | 27 | 0.3 | 2 |
| 4RR20 | 20 | 4 | 28 | Adjustable | 16 | 1500 | 27 | 0.6 | 2.5 |
| HT22 | 22 | 3 | 14 | Adjustable | 16 | 1500 | 27 | 0.3 | 2 |
| 4RR22 | 22 | 4 | 28 | Adjustable | 16 | 1500 | 27 | 0.6 | 2.5 |
| HT25 | 25 | 3 | 20 | Adjustable | 19 | 1500 | 28.5 | 0.3 | 2.65 |
| 4RR25 | 25 | 4 | 40 | Adjustable | 19 | 1500 | 28.5 | 0.6 | 3.18 |
| HT3N | 30 | 3 | 25 | Adjustable | 24 | 1000 | 24 | 1.2 | 3.2 |
| 4RR30 | 30 | 4 | 42 | Adjustable | 24 | 1000 | 24 | 2.5 | 42 |
| 3RR40 | 40 | 3 | 42 | Adjustable | 29 | 750 | 22.5 | 3.5 | 5.6 |
| HT4 | 40 | 3 | 42 | Adjustable | 29 | 750 | 22.5 | 3.5 | 6.6 |
| 4RR40 | 40 | 4 | 76 | Adjustable | 29 | 750 | 22.5 | 4.5 | 7.5 |
| HT5 | 50 | 3 | 62 | Adjustable | 36 | 500 | 18 | 7.5 | 9.9 |
| 4RR50 | 50 | 4 | 116 | Adjustable | 36 | 500 | 18 | 13 | 11.3 |
| HT6 | 60 | 3 | 100 | Adjustable | 48 | 350 | 17.5 | 10 | 15.7 |
| 4RR60 | 60 | 4 | 200 | Adjustable | 58 | 350 | 17.5 | 16 | 18.5 |
| HT8 | 80 | 3 | 150 | Adjustable | 64 | 300 | 19.8 | 32 | 32 |
| 4RR80 | 80 | 4 | 300 | Adjustable | 64 | 250 | 16.5 | 37 | 38.7 |
Side Thrust
This term refers to the maximum force that can be safely applied in a lateral direction. If this force exceeds the specified maximum value, the traverse unit may slip on the shaft.

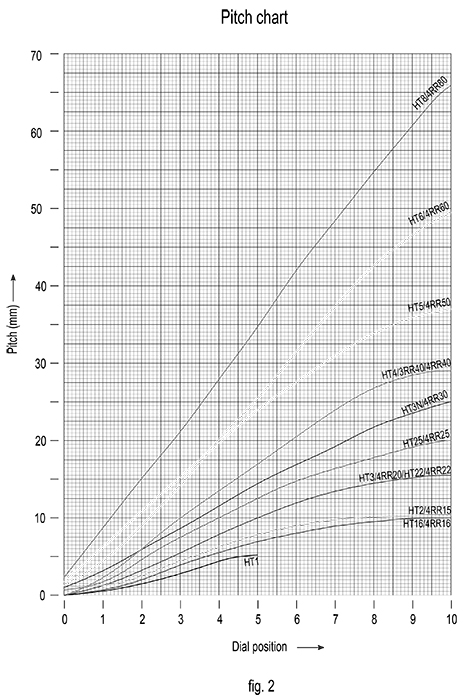

Pitch
Pitch denotes the linear movement of the traverse unit per one full rotation of the shaft. The pitch reaches its maximum value at a dial setting of 10. For precise adjustments, shift the pointer lever along the dial. For optimal accuracy and performance, it is recommended to operate the traverse unit at a setting above 1 on the dial.
Maximum Pitch
The maximum pitch is the linear movement achieved per one full rotation of the shaft, typically set at a dial setting of 10.
10
mm

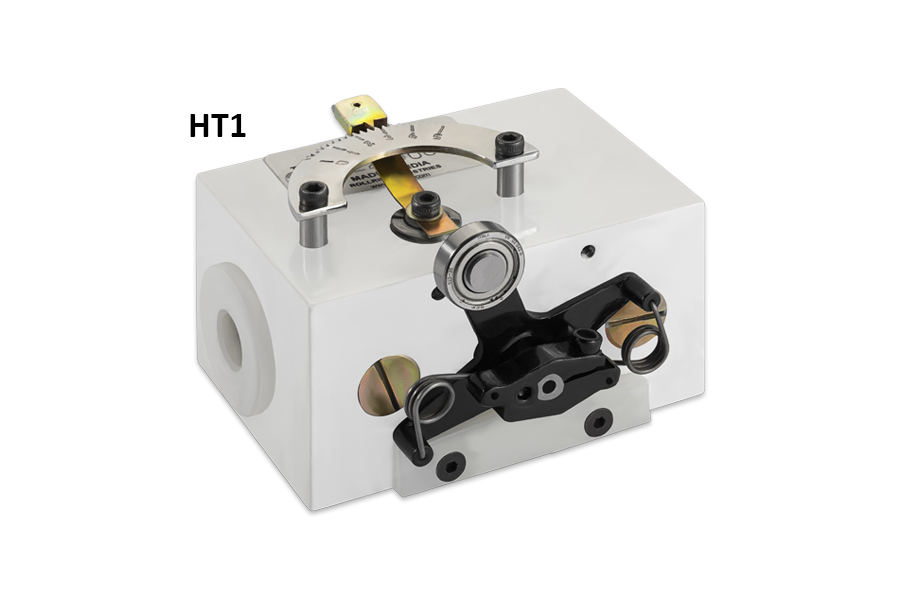

Traverse unit for 10 mm diameter shaft
(Model HT1)
Specification
| Description | HT 1 |
|---|---|
| Number of Rolling Rings | 3 |
| Max. Side Thrust* | 5 KG |
| Max. Pitch* (At setting 10 on the dial ) |
5.6 mm |
| Max Shaft Speed | 2000 RPM |
| Max Linear Speed | 11.2 m/min |
| Drive Torque requirement | 0.25 Kg cm |
| Weight | 0.5 Kg |
| Free Movement Lever(FM) | NOT AVAILABLE |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

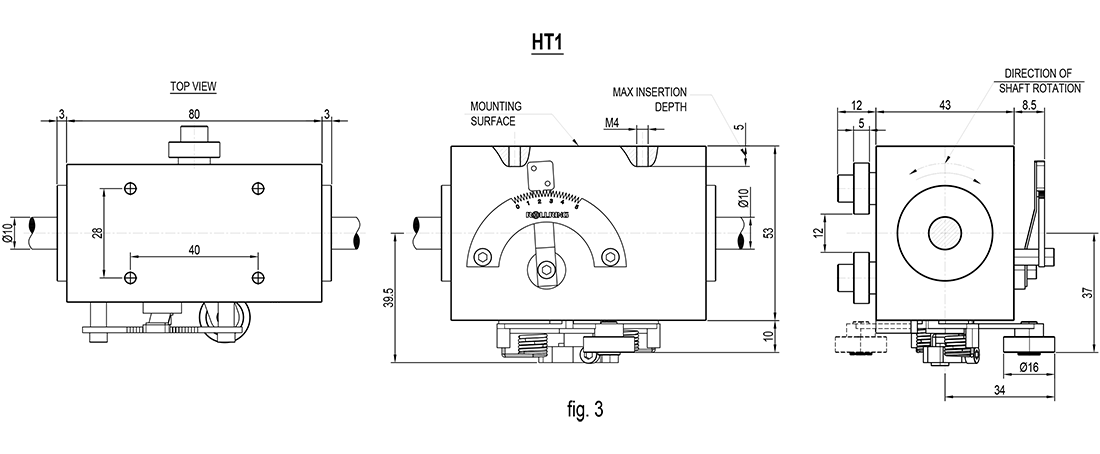

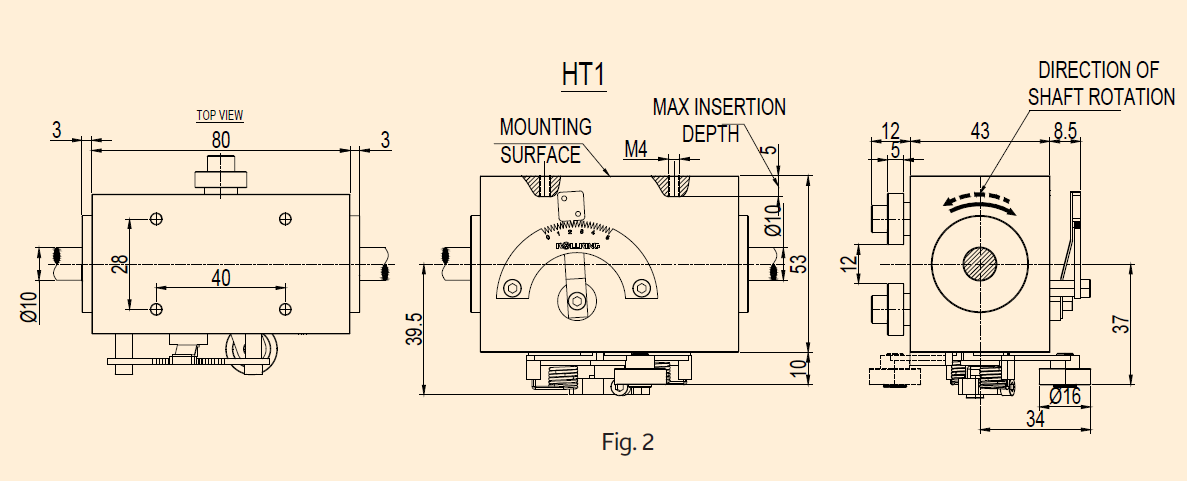

Dimensions
15
mm

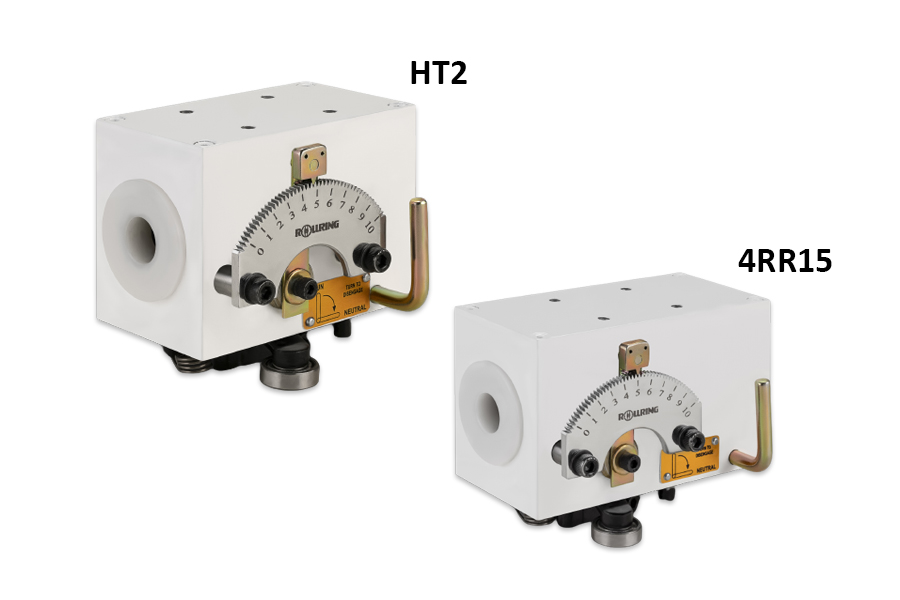

Traverse unit for 15 mm diameter shaft
(Model HT2 & 4RR15)
Specification
| Description | HT 2 | 4RR15 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 10 KG | 18 KG |
| Max Pitch* (At setting 10 on the dial ) |
9.5 mm | 9.5 mm |
| Max Shaft Speed | 2000 RPM | 2000 RPM |
| Max Linear Speed | 19 m/min | 19 m/min |
| Drive Torque Requirement | 0.3 Kg cm | 0.5 Kg cm |
| Weight | 1.1 Kg | 1.31 Kg |
| Free Movement Lever(FM) | FM1 & FM2 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

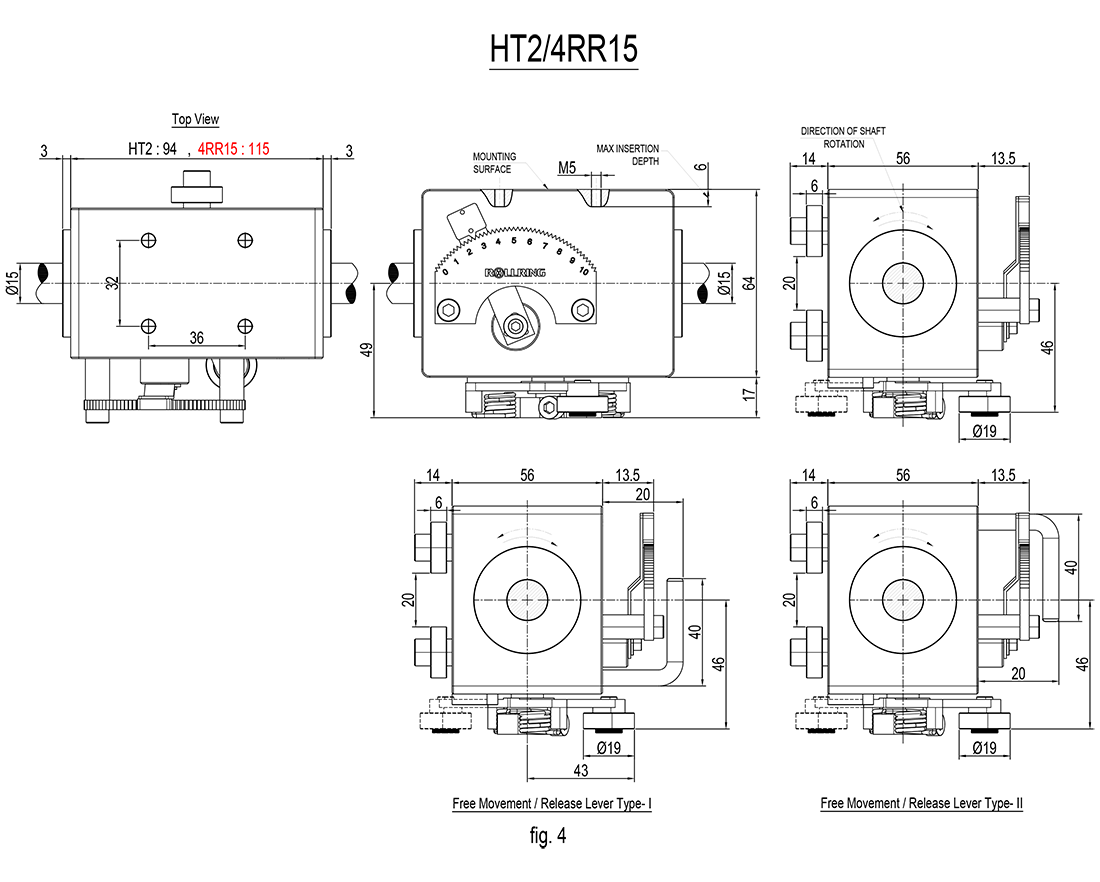

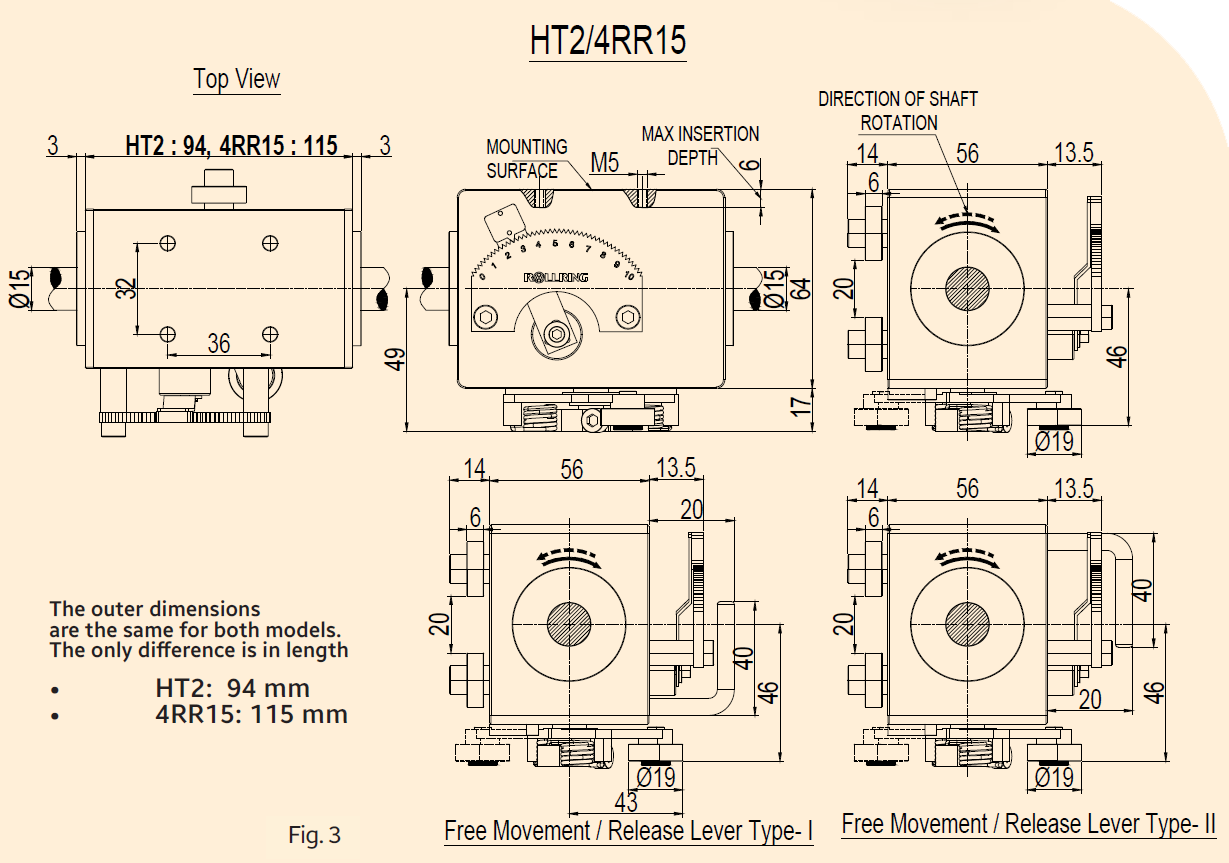

Dimensions
16
mm

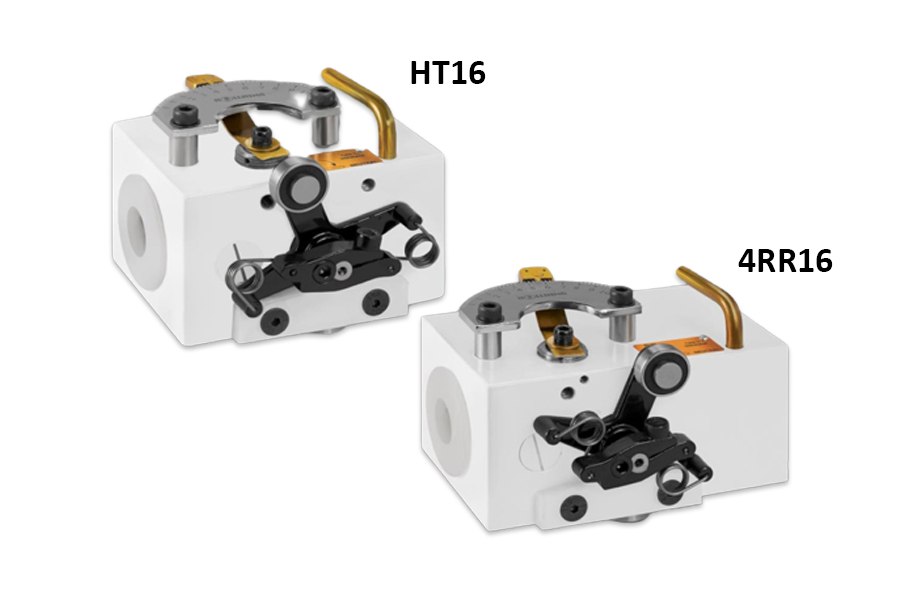

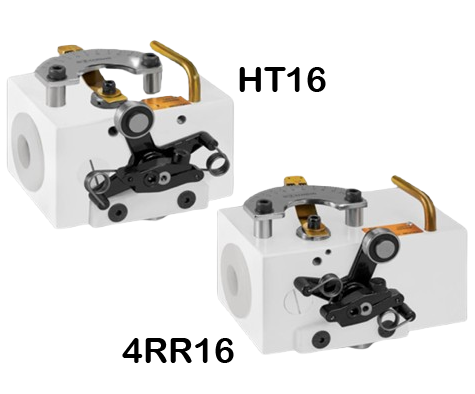

Traverse unit for 16 mm diameter shaft
(Model HT16 & 4RR16)
Specification
| Description | HT16 | 4RR16 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 9.9 mm | 9.9 mm |
| Max Pitch* (At setting 10 on the dial ) |
9.5 mm | 9.5 mm |
| Max Shaft Speed | 2000 RPM | 2000 RPM |
| Max Linear Speed | 19.8 m/min | 19.8 m/min |
| Drive Torque Requirement | 0.3 Kg cm | 0.6 Kg cm |
| Weight | 1.08 Kg | 1.28 Kg |
| Free Movement Lever(FM) | FM1 & FM2 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

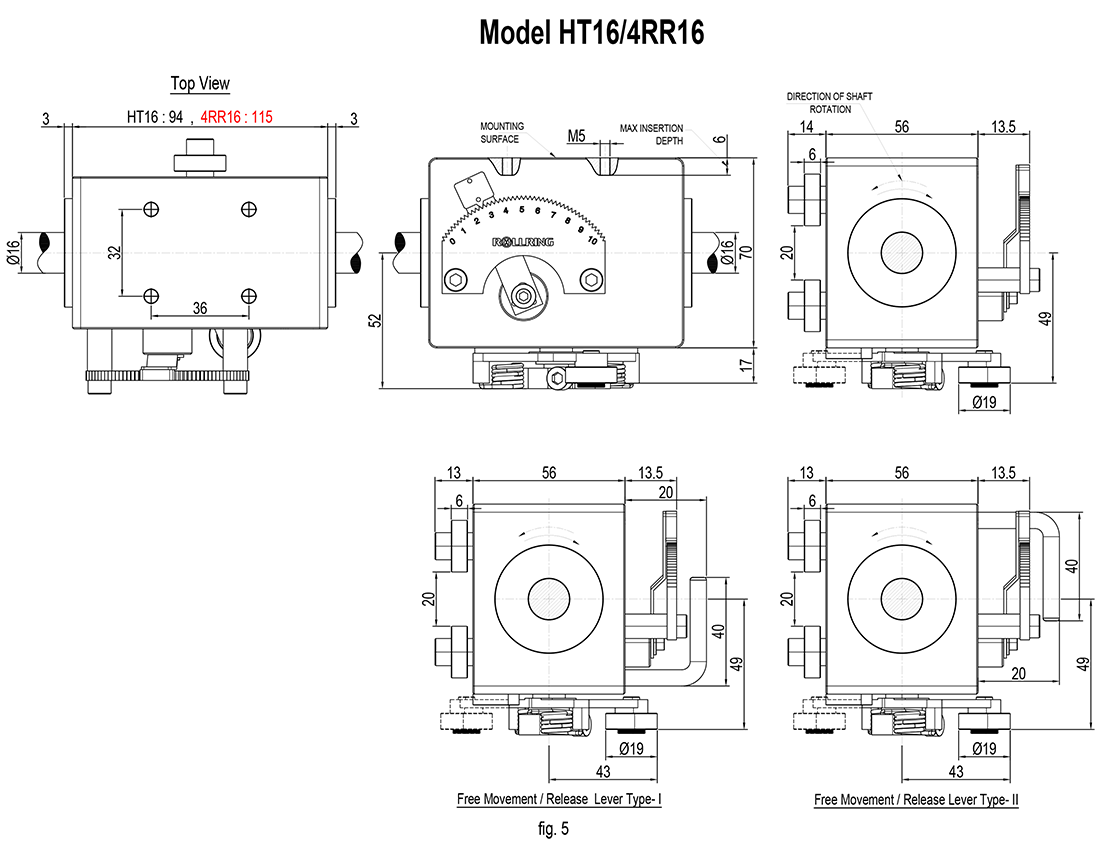

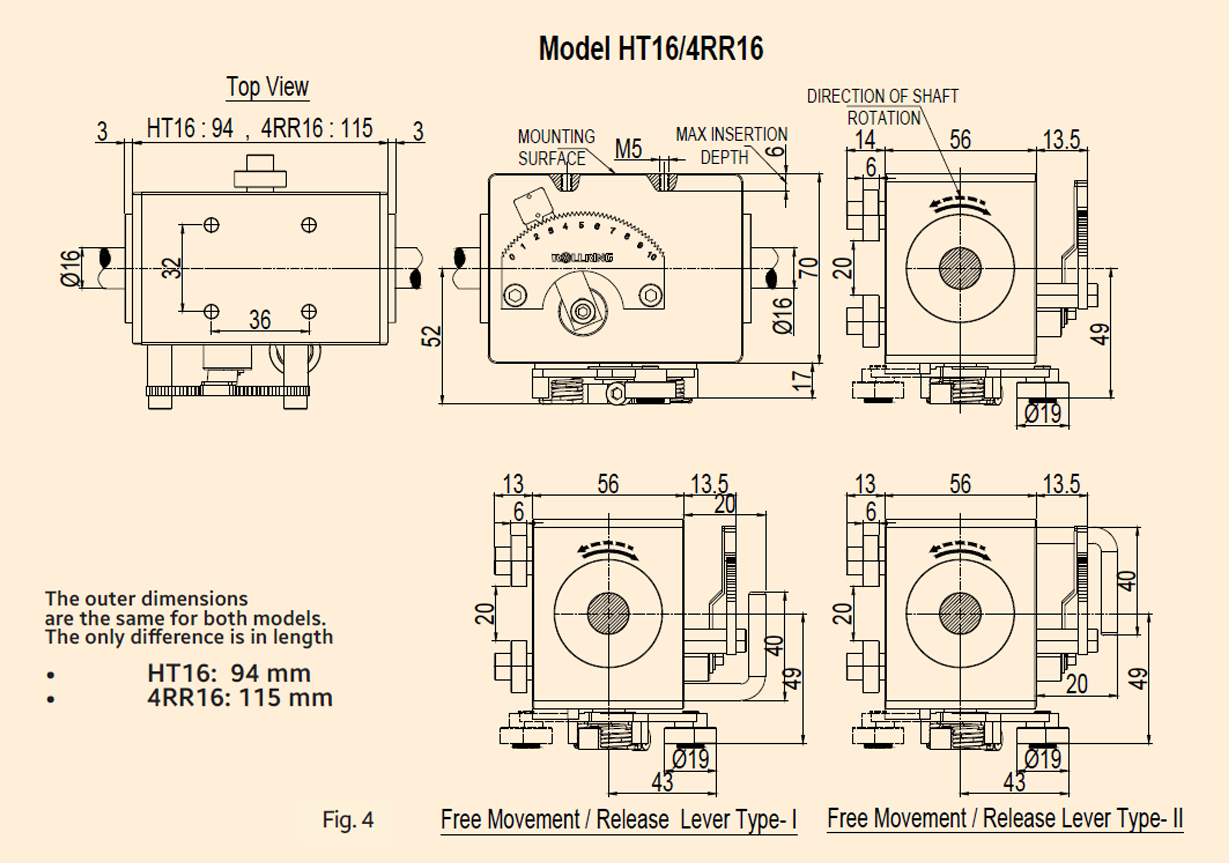

Dimensions
20
mm

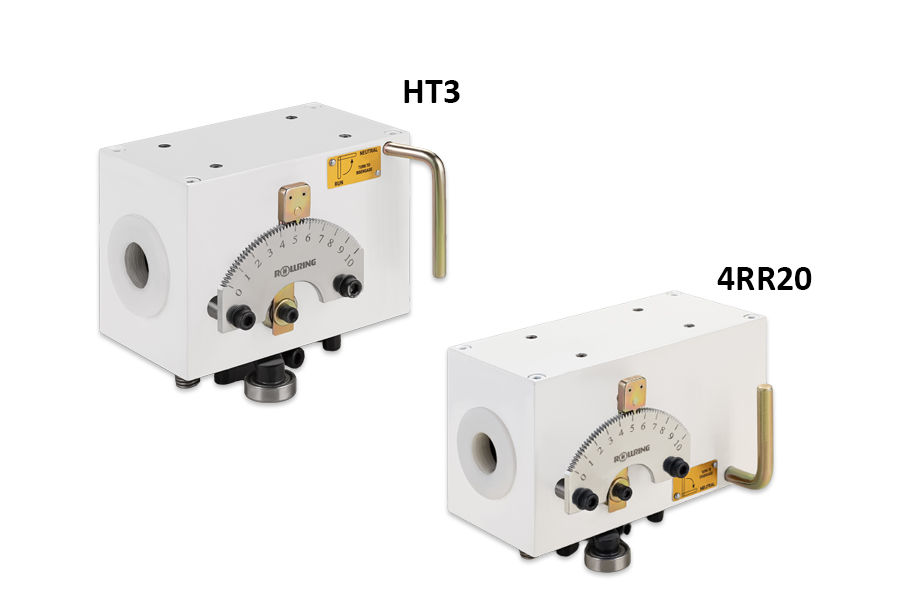

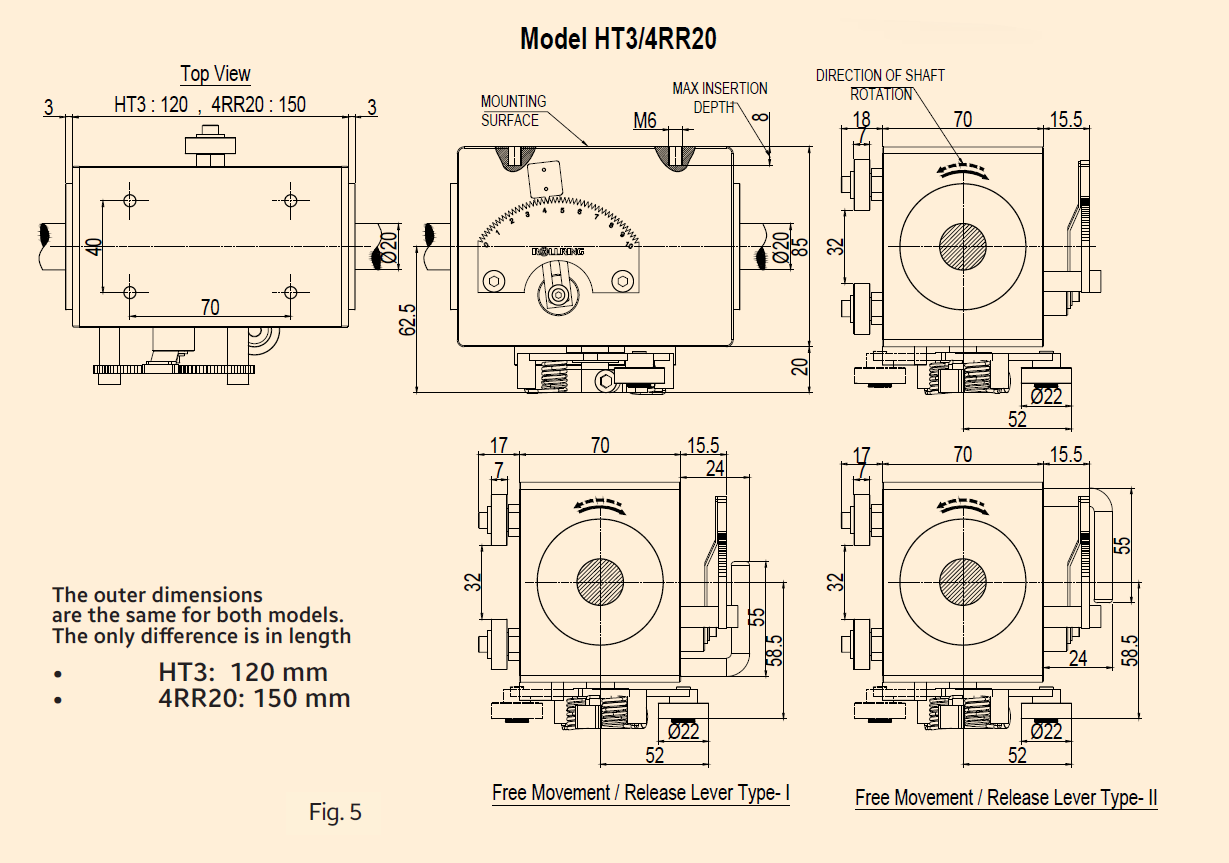

Traverse unit for 20 mm diameter shaft
(Model HT3 & 4RR20)
Specification
| Description | HT3 | 4RR20 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 18 Kg | 28 Kg |
| Max Pitch* (At setting 10 on the dial ) |
16 mm | 16 mm |
| Max Shaft Speed | 1500 RPM | 1500 RPM |
| Max Linear Speed | 27 m/min | 27 m/min |
| Drive Torque Requirement | 0.3 Kg cm | 0.6 Kg cm |
| Weight | 2 Kg | 2.5 Kg |
| Free Movement Lever(FM) | FM1 & FM2 | FM1 |
*Maximum Side Thrust : This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch : Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

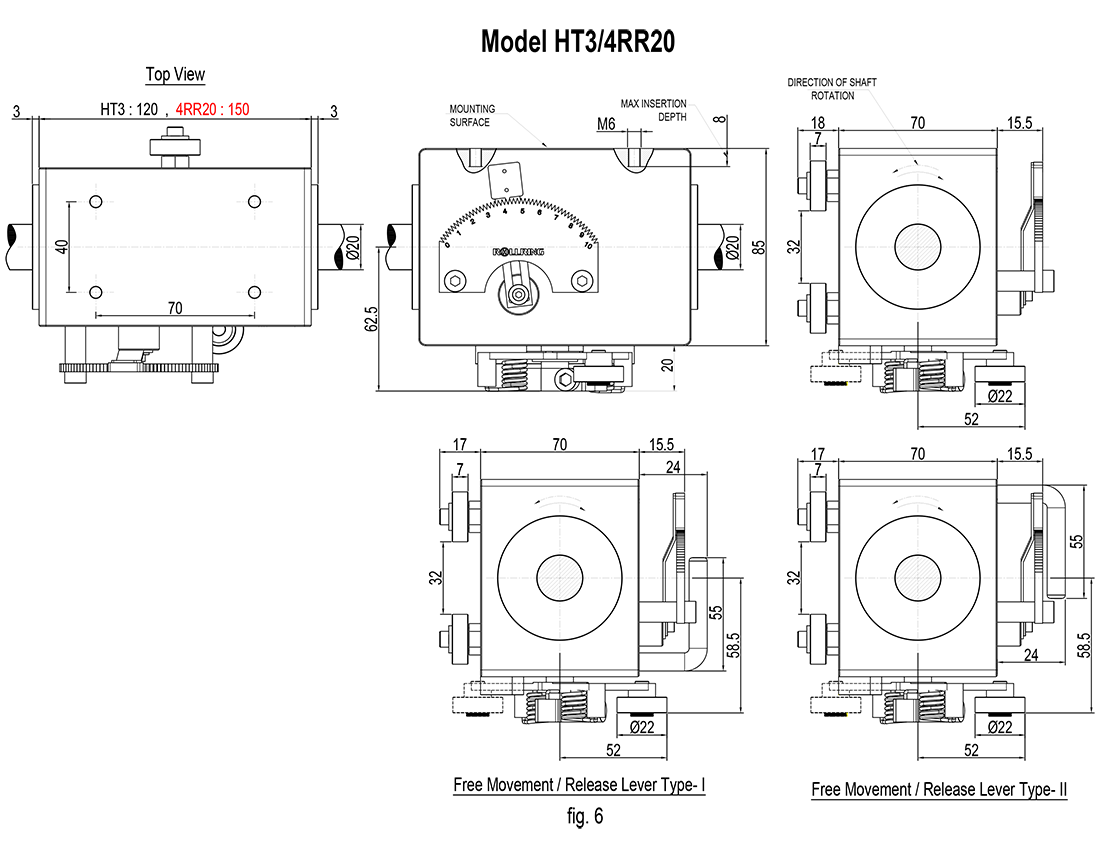

Dimensions
22
mm

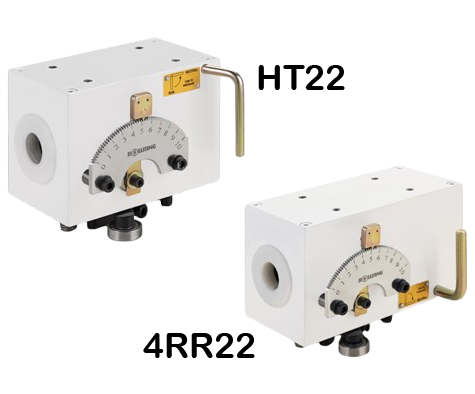

Traverse unit for 22 mm diameter shaft
(Model HT22 & 4RR22)
Specification
| Description | HT22 | 4RR22 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 18 Kg | 28 Kg |
| Max Pitch* (At setting 10 on the dial ) |
16 mm | 16 mm |
| Max Shaft Speed | 1500 RPM | 1500 RPM |
| Max Linear Speed | 27 m/min | 27 m/min |
| Drive Torque Requirement | 0.3 Kg cm | 0.6 Kg cm |
| Weight | 2 Kg | 2.5 Kg |
| Free Movement Lever(FM) | FM1 & FM2 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

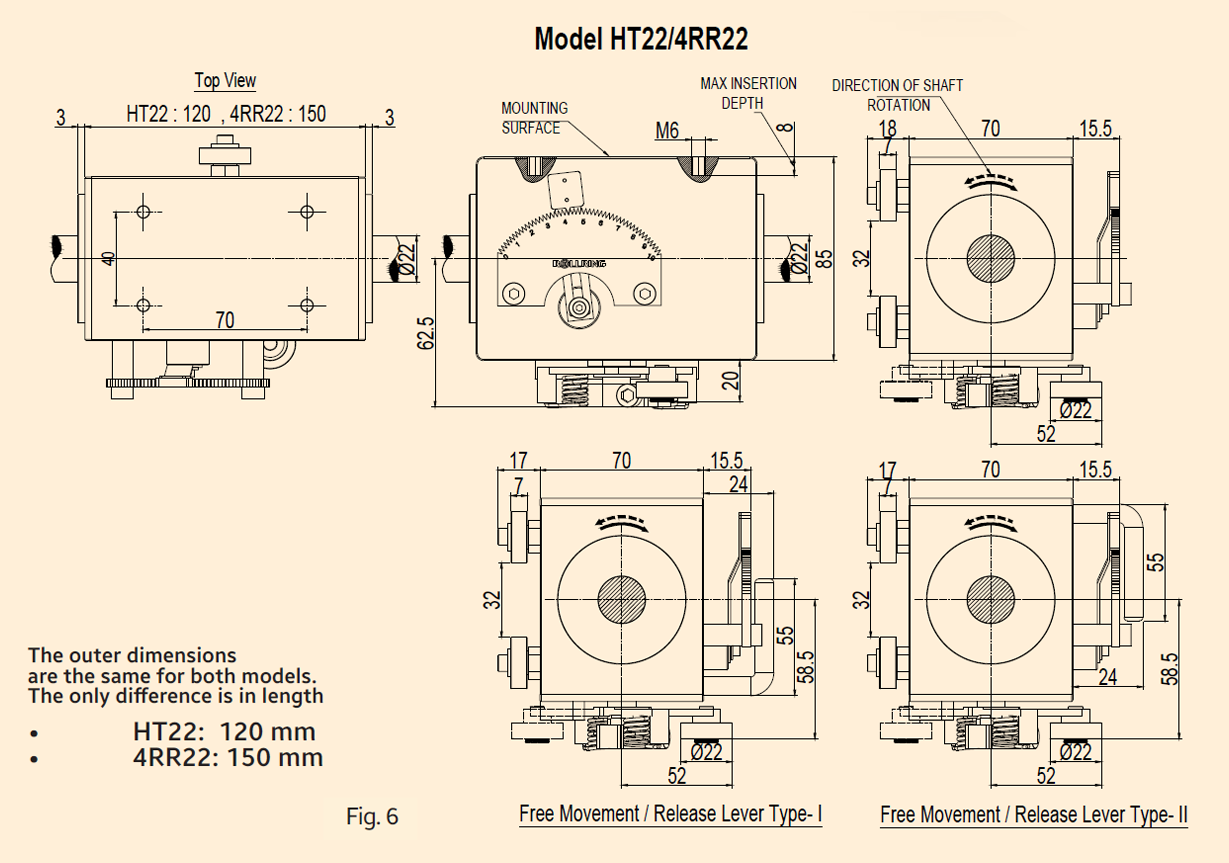

Dimensions
25
mm

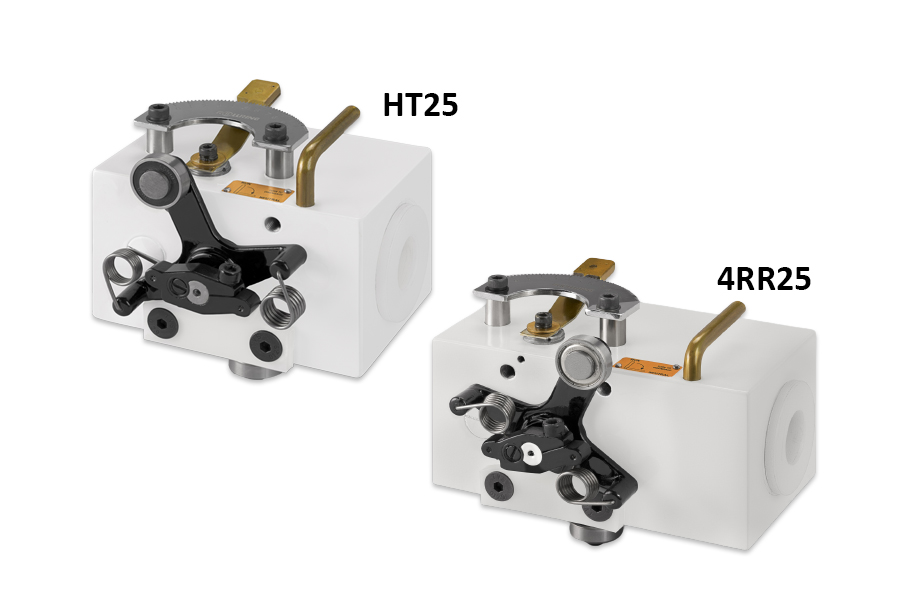

Traverse unit for 25 mm diameter shaft
(Model HT25 & 4RR25)
Specification
| Description | HT25 | 4RR25 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 22 Kg | 40 Kg |
| Max Pitch* (At setting 10 on the dial ) |
19 mm | 19 mm |
| Max Shaft Speed | 1500 RPM | 1500 RPM |
| Max Linear Speed | 28.5 m/min | 28.5 m/min |
| Drive Torque Requirement | 0.3 Kg cm | 0.6 Kg cm |
| Weight | 2.65 Kg | 3.18 Kg |
| Free Movement Lever(FM) | FM1 & FM2 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

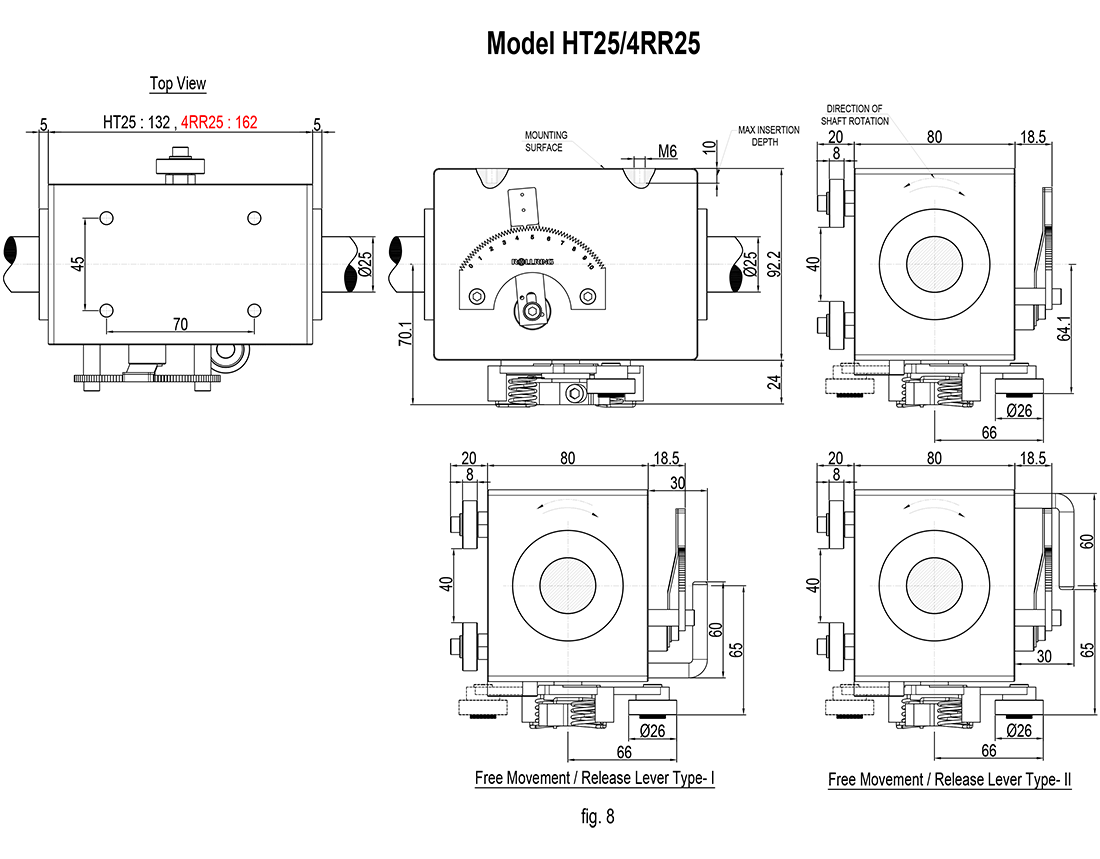

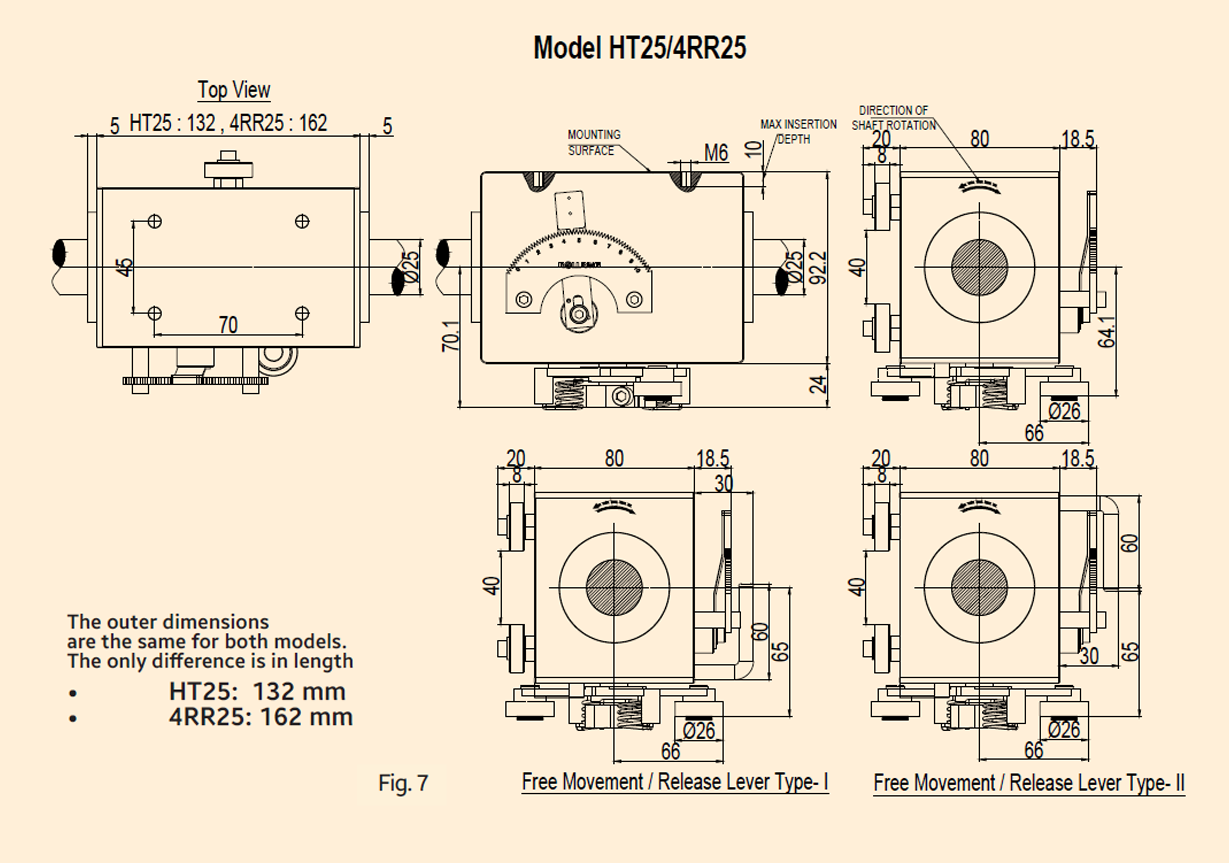

Dimensions
30
mm

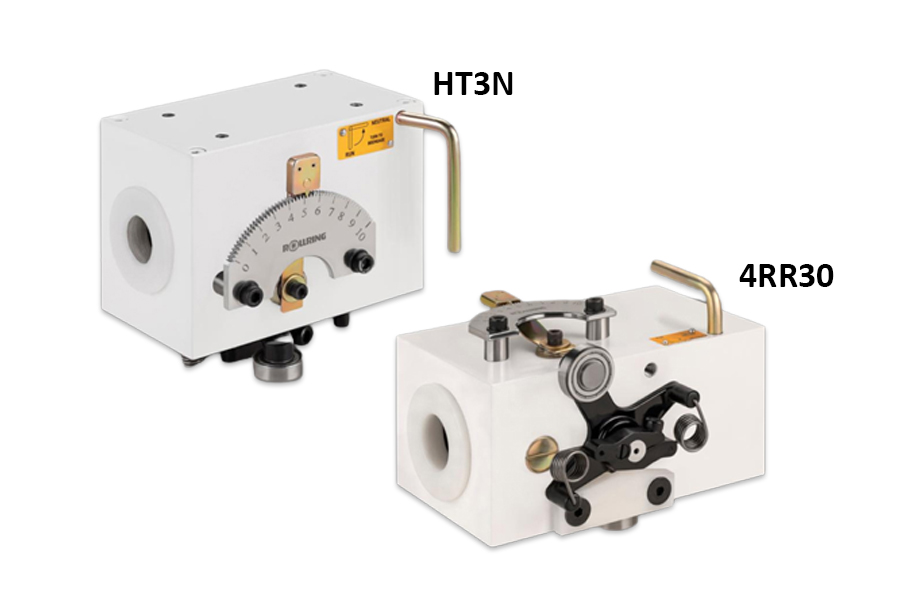

Traverse unit for 30 mm diameter shaft
(Model HT3N & 4RR30)
Specification
| Description | HT3N | 4RR30 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 25 Kg | 42 Kg |
| Max Pitch* (At setting 10 on the dial ) |
24 mm | 24 mm |
| Max Shaft Speed | 1000 RPM | 1000 RPM |
| Max Linear Speed | 24 m/min | 24 m/min |
| Drive Torque Requirement | 1.2 Kg cm | 2.5 Kg cm |
| Weight | 3.2Kg | 4 Kg |
| Free Movement Lever(FM) | FM1 & FM2 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

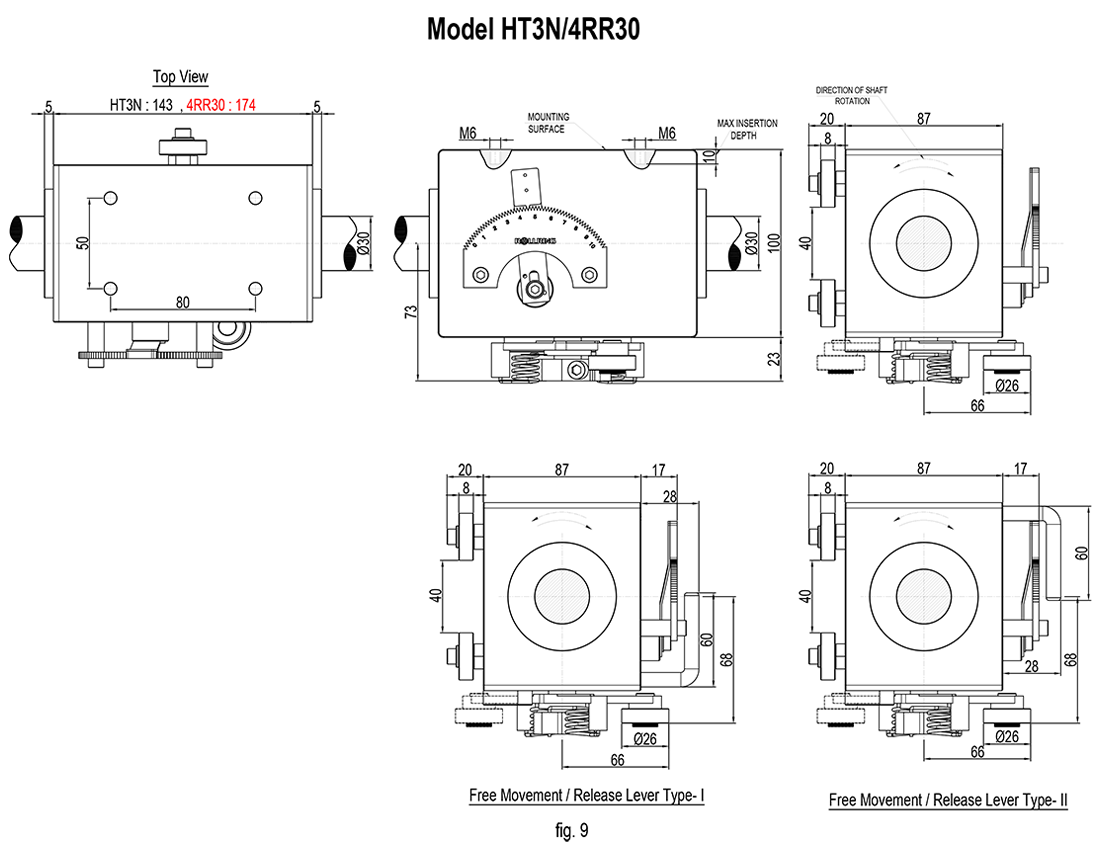

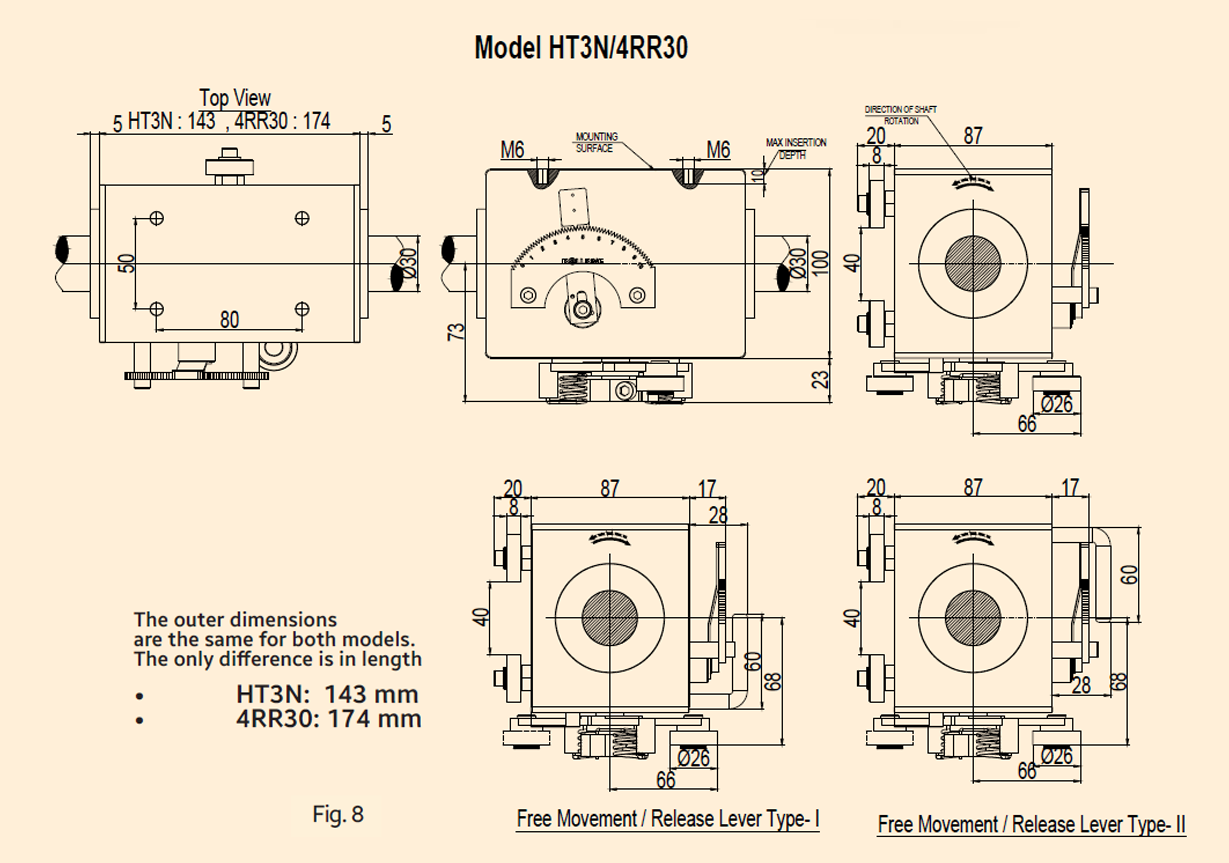

Dimensions
40
mm

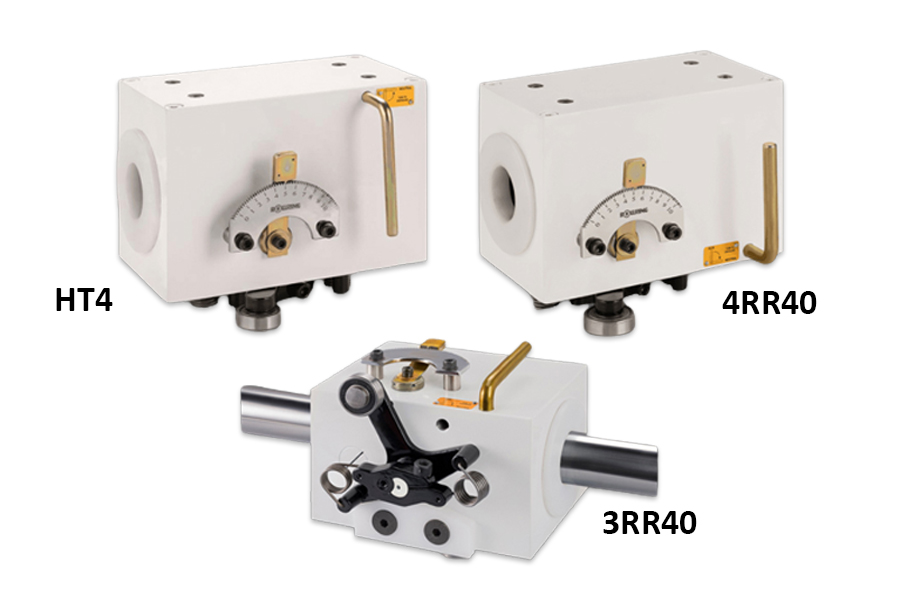

Traverse unit for 40 mm diameter shaft
(Model HT4 , 3RR40 & 4RR40 )
Specification
| Description | HT4 | 3RR40 | 4RR40 |
|---|---|---|---|
| Number of Rolling Rings | 3 | 3 | 4 |
| Max. Side Thrust* | 42 Kg | 42 Kg | 76 Kg |
| Max Pitch* (At setting 10 on the dial ) |
29 mm | 29 mm | 29 mm |
| Max Shaft Speed | 750 RPM | 750 RPM | 750 RPM |
| Max Linear Speed | 22.5 m/min | 22.5 m/min | 22.5 m/min |
| Drive Torque Requirement | 3.5 Kg cm | 3.5 Kg cm | 4.5 Kg cm |
| Weight | 6.6 Kg | 5.6 Kg | 7.5 Kg |
| Free Movement Lever(FM) | FM1 & FM2 | FM1 & FM2 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

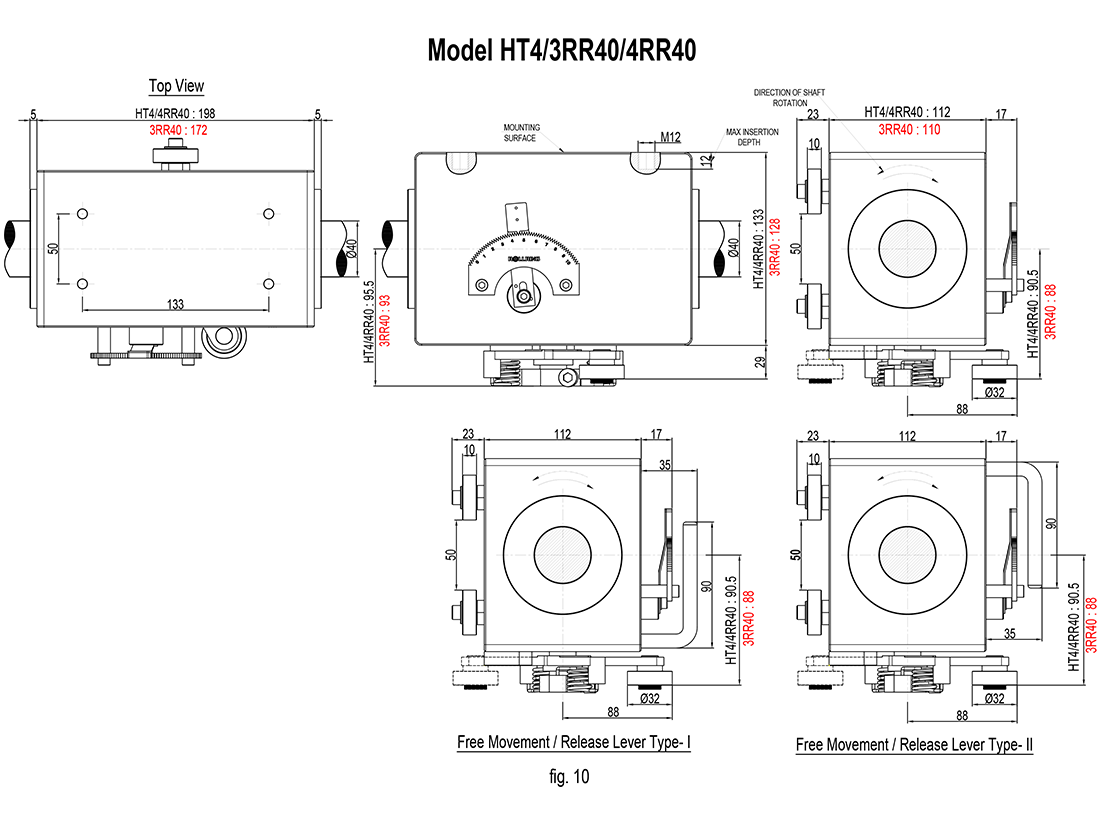

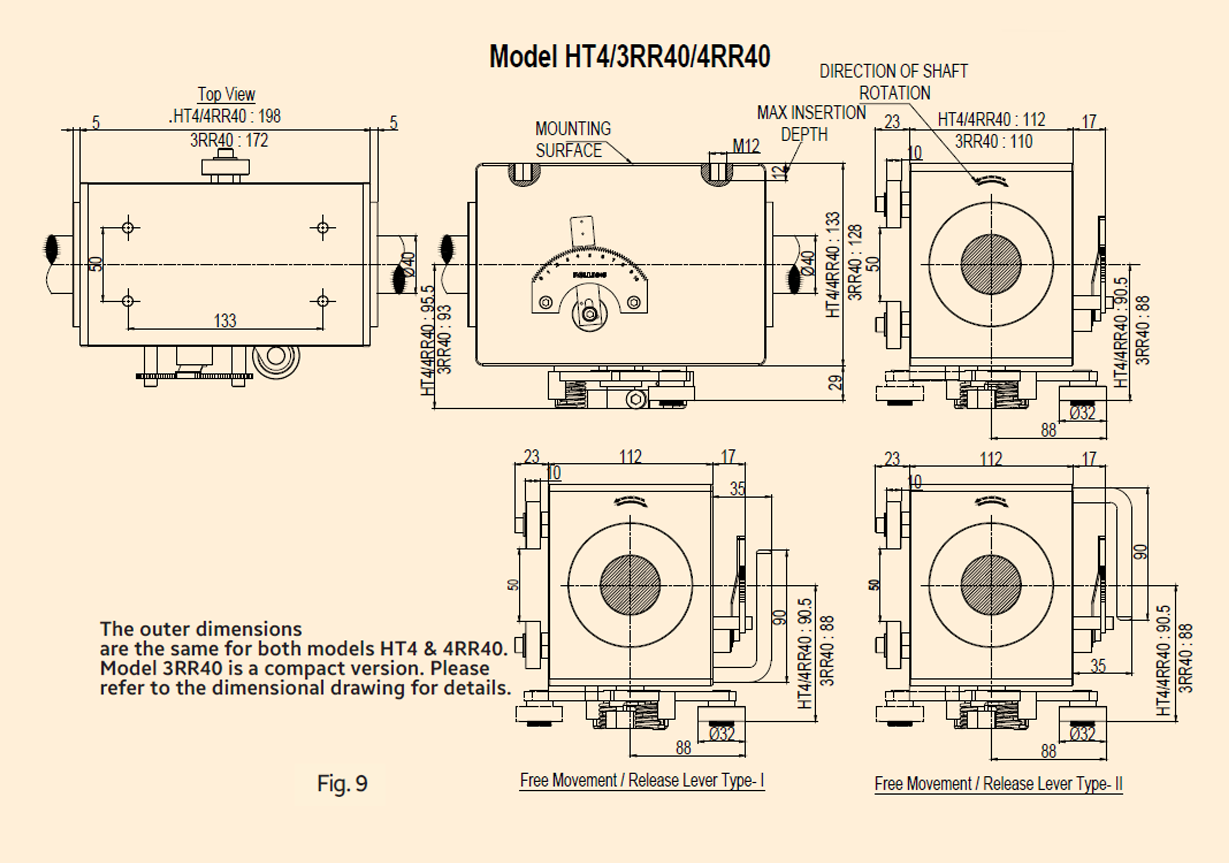

Dimensions
50
mm

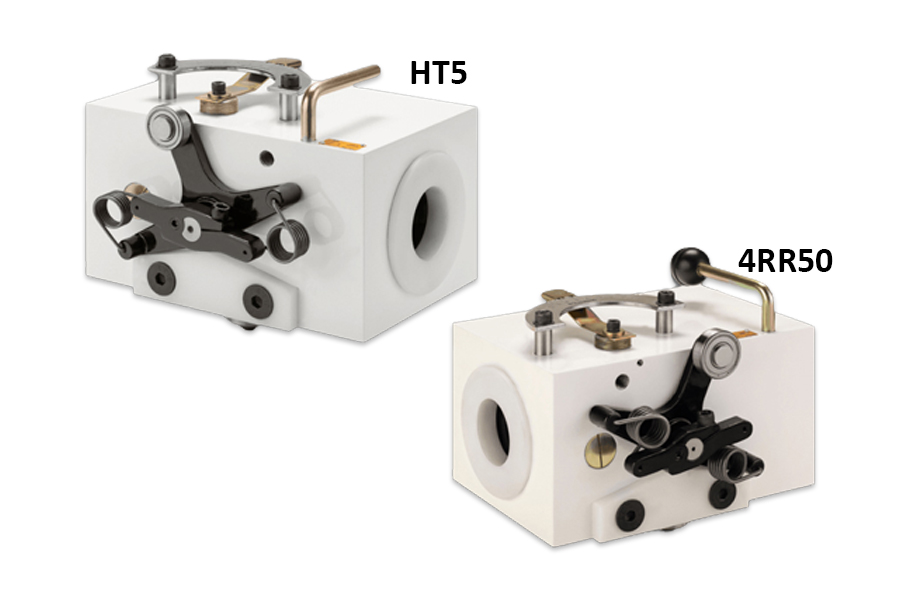

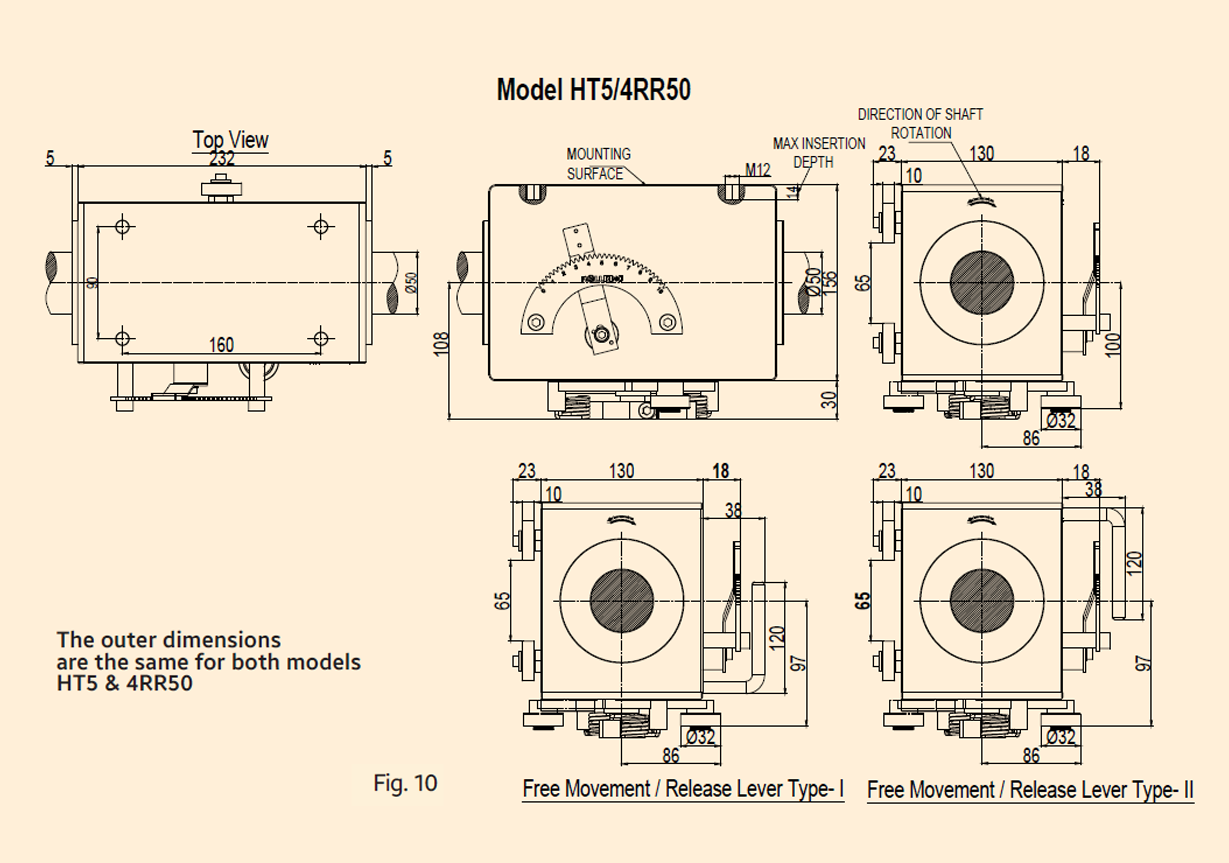

Traverse unit for 50 mm diameter shaft
(Model HT5 & 4RR50)
Specification
| Description | HT5 | 3RR50 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 62 Kg | 116 Kg |
| Max Pitch* (At setting 10 on the dial ) |
36 mm | 36 mm |
| Max Shaft Speed | 500 RPM | 500 RPM |
| Max Linear Speed | 18 m/min | 18 m/min |
| Drive Torque Requirement | 7.5 Kg cm | 13 Kg cm |
| Weight | 9.9 Kg | 11.3 Kg |
| Free Movement Lever(FM) | FM1 & FM2 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

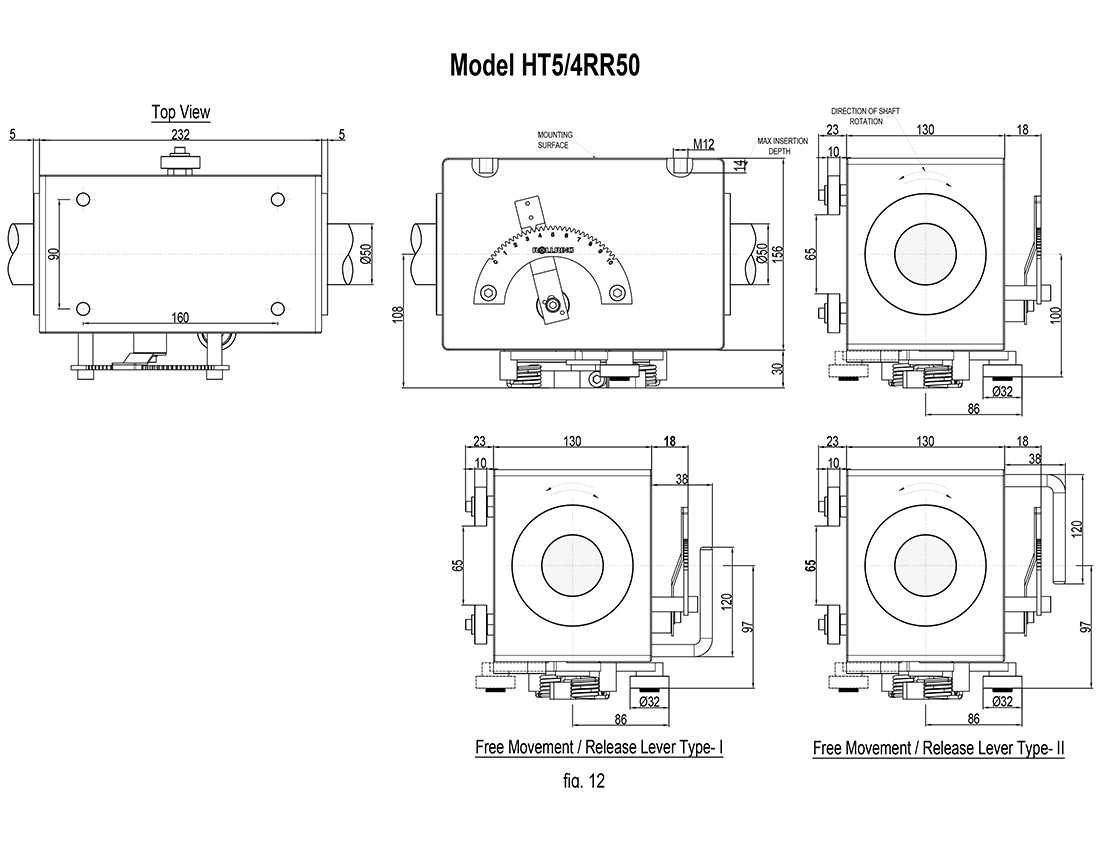

Dimensions
60
mm

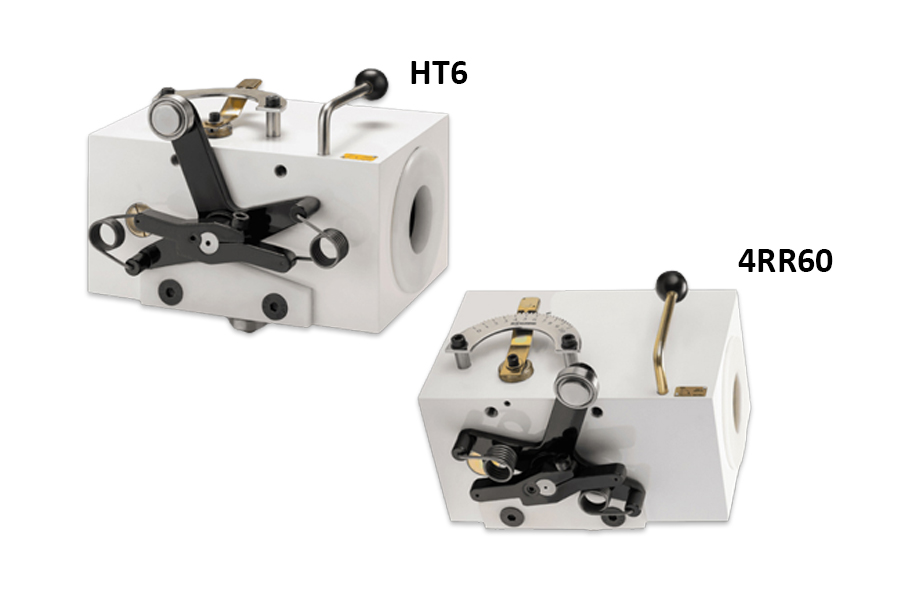

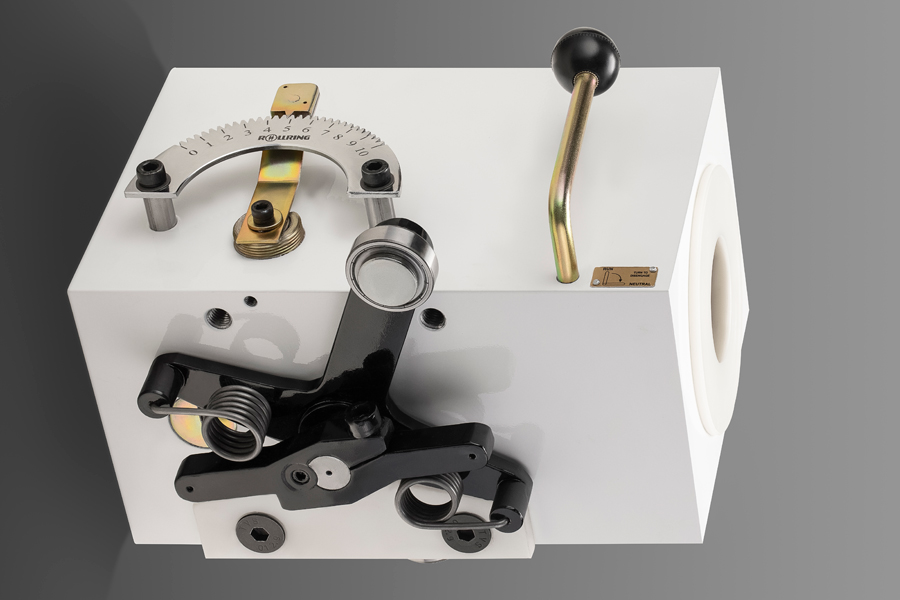

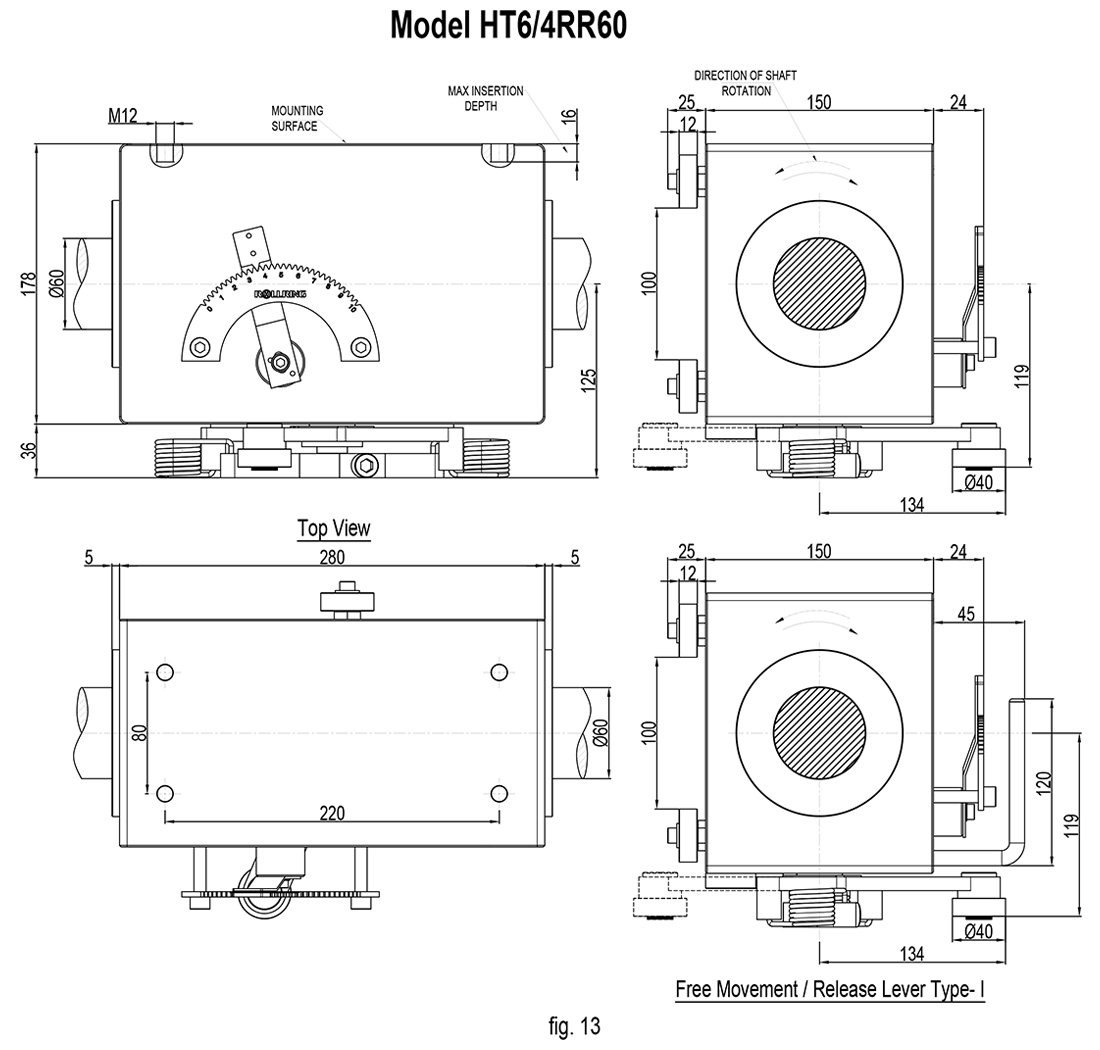

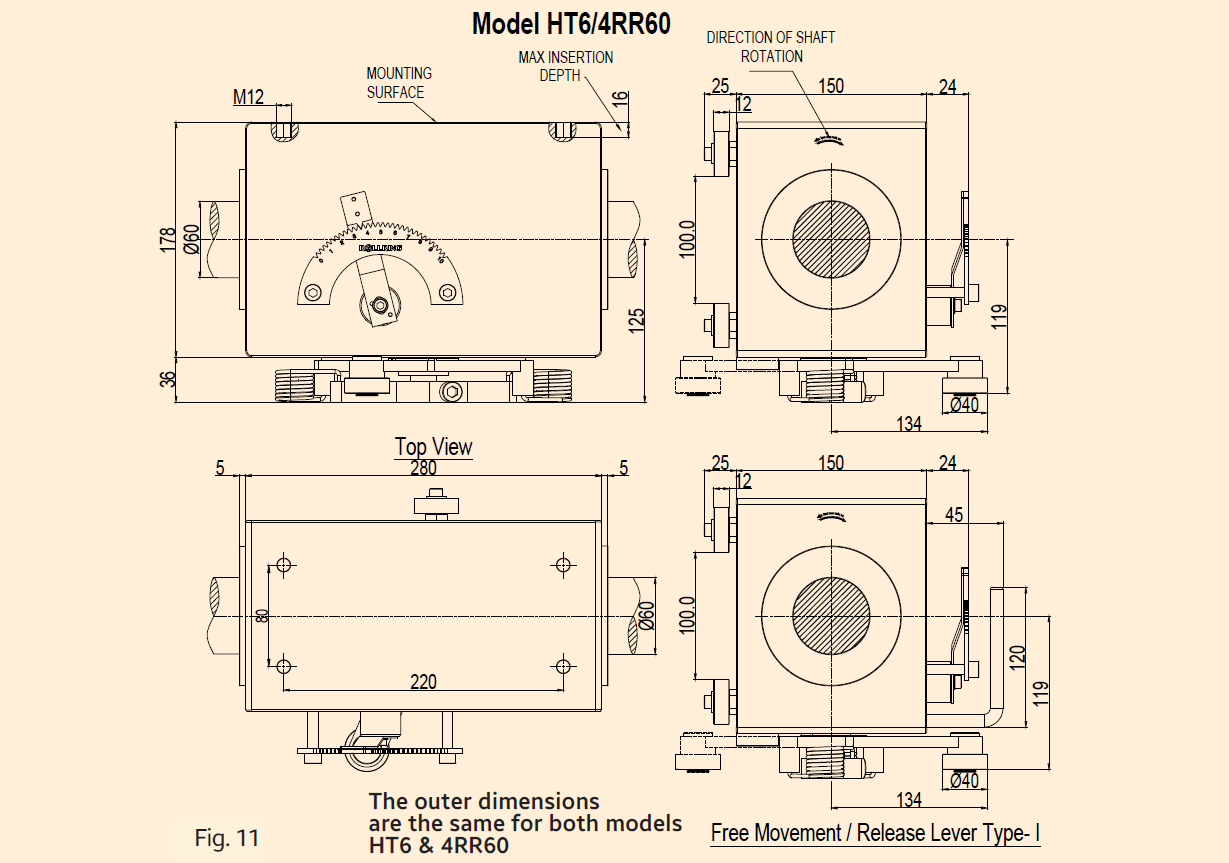

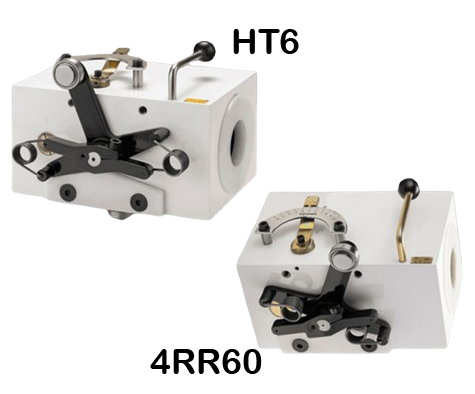

Traverse unit for 60 mm diameter shaft
(Model HT6 & 4RR60)
Specification
| Description | HT6 | 34RR60 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 100 Kg | 200 Kg |
| Max Pitch* (At setting 10 on the dial ) |
48 mm | 48 mm |
| Max Shaft Speed | 350 RPM | 350 RPM |
| Max Linear Speed | 17.5 m/min | 17.5 m/min |
| Drive Torque Requirement | 10 Kg cm | 16 Kg cm |
| Weight | 15.7 Kg | 18.5 Kg |
| Free Movement Lever(FM) | FM1 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.
Dimensions
80
mm

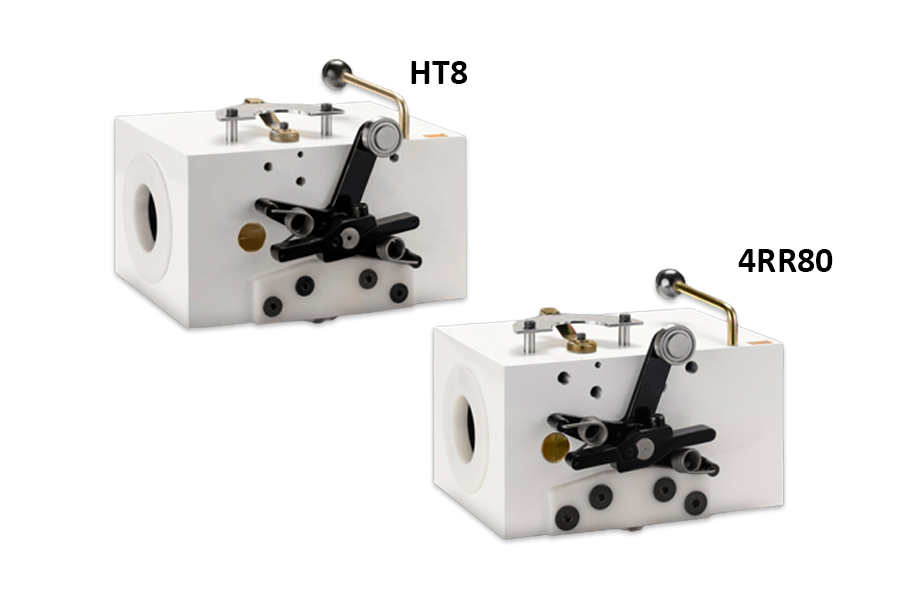

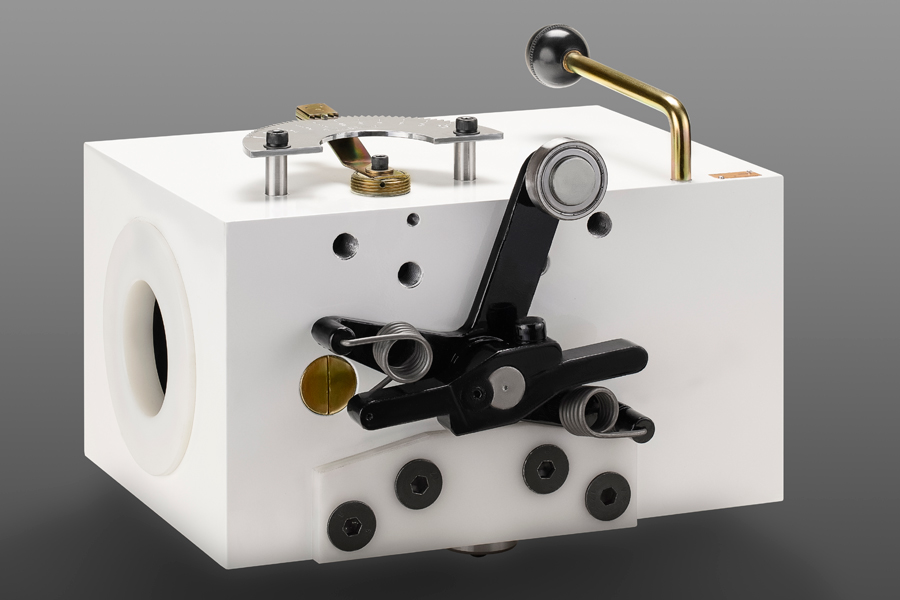

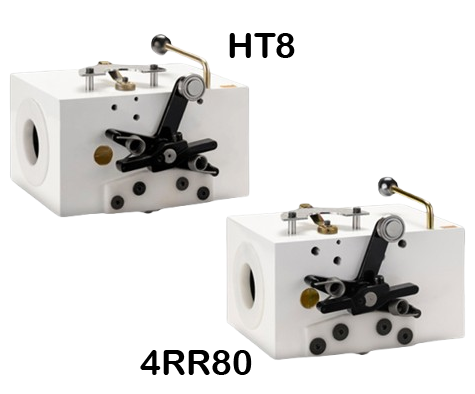

Traverse unit for 80 mm diameter shaft
(Model HT8 & 4RR80)
Specification
| Description | HT8 | 4RR80 |
|---|---|---|
| Number of Rolling Rings | 3 | 4 |
| Max. Side Thrust* | 150 Kg | 300 Kg |
| Max Pitch* (At setting 10 on the dial ) |
64 mm | 64 mm |
| Max Shaft Speed | 300 RPM | 250 RPM |
| Max. Linear Speed | 19.8 m/min | 16.5 m/min |
| Drive Torque Requirement | 32 Kg cm | 37 Kg cm |
| Weight | 32 Kg | 38.7 Kg |
| Free Movement Lever(FM) | FM1 | FM1 |
*Maximum Side Thrust: This term refers to the maximum
force that can be safely applied in a lateral direction.
*Maximum Pitch: Pitch denotes the linear movement of the traverse
unit per one full rotation of the shaft. The pitch reaches its maximum
value at a dial setting of 10.

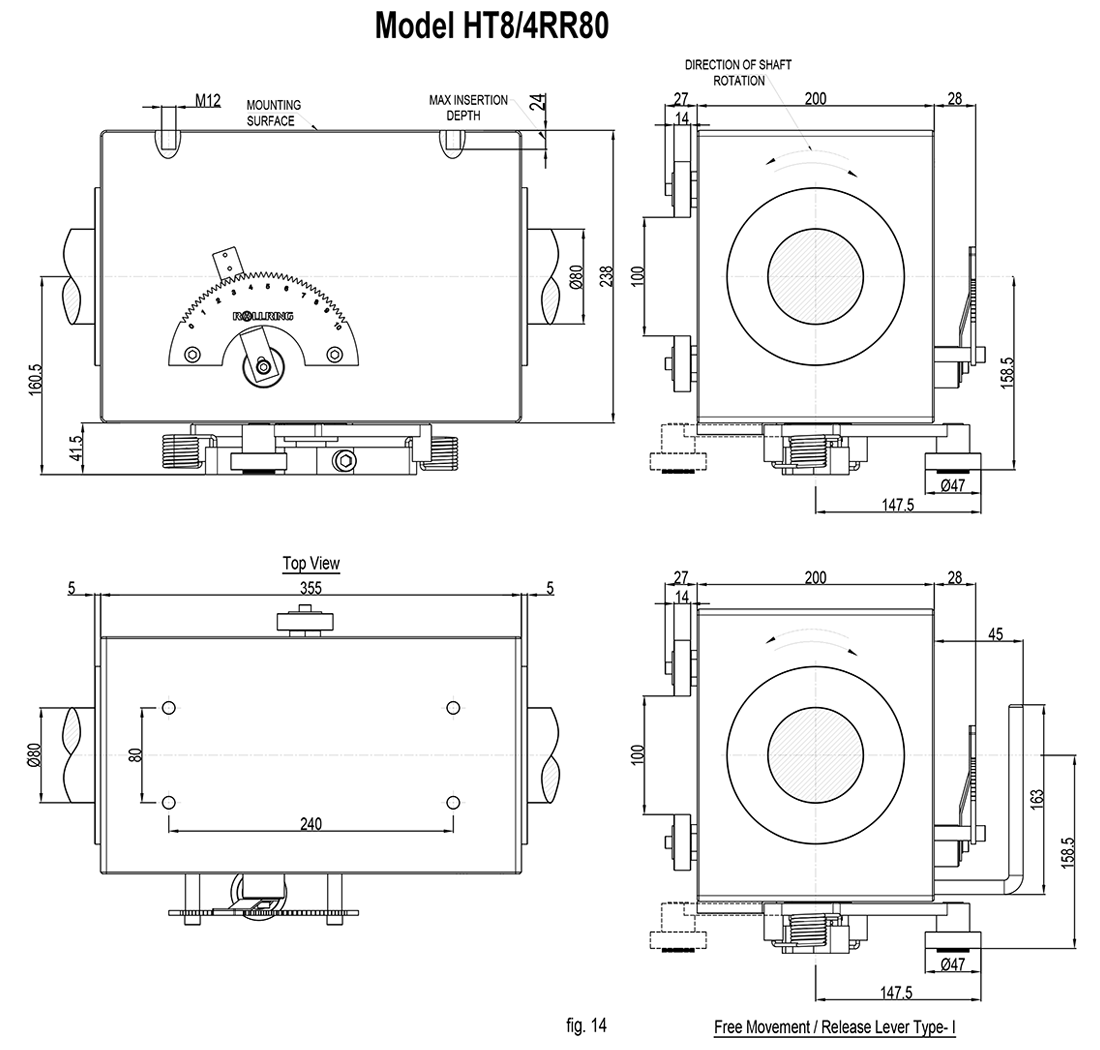

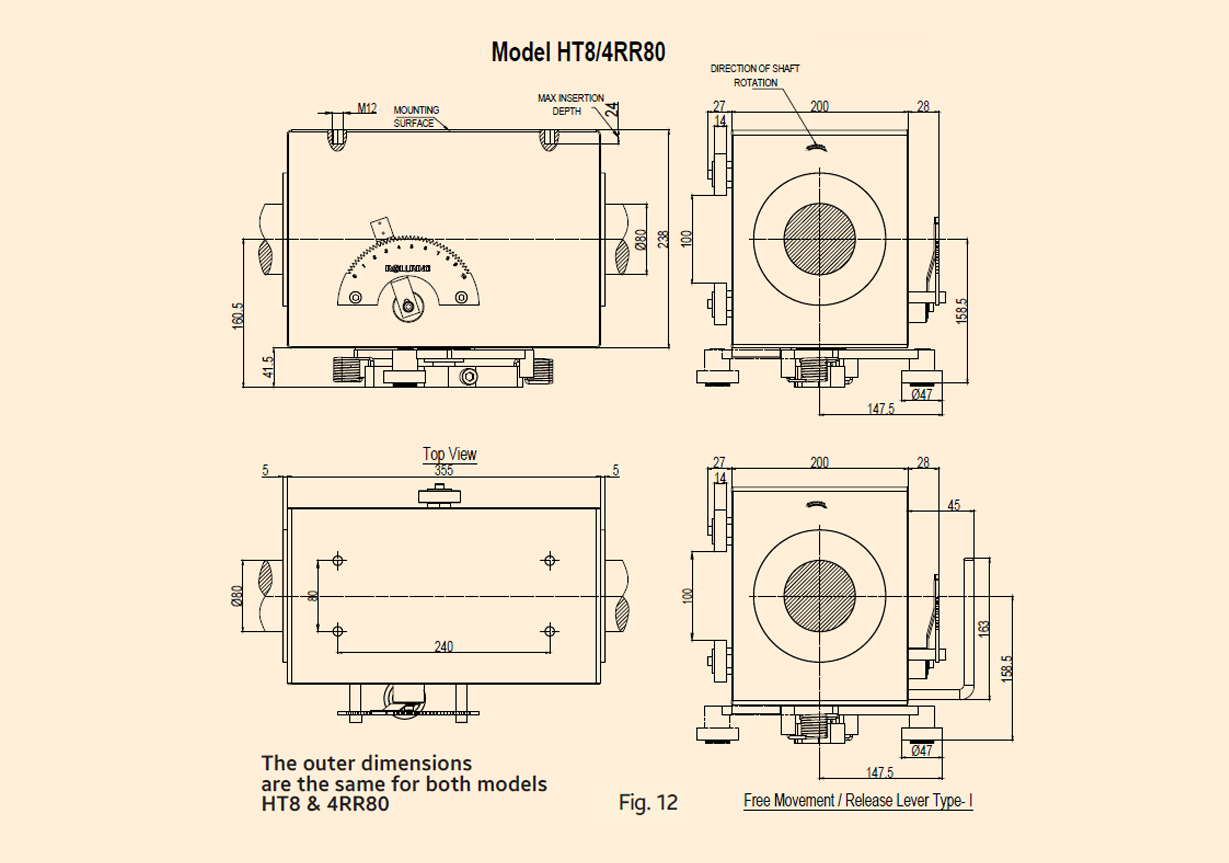

Dimensions
